silicon dot coating machine for non slip carpet

PVC/Silicon dot coating machine for non-slip carpet

This dot coating machine can do anti -slip plastic dot coating onto basic materials such as non-woven, fabric, felt, etc in dot form or other patterns, to get anti slip purpose.

It is widely used in Carpet industry, textile industry, home decoration industry, Anti-Slip Fabric, hotels, Garments, gloves, sports products, etc.

Machine Description

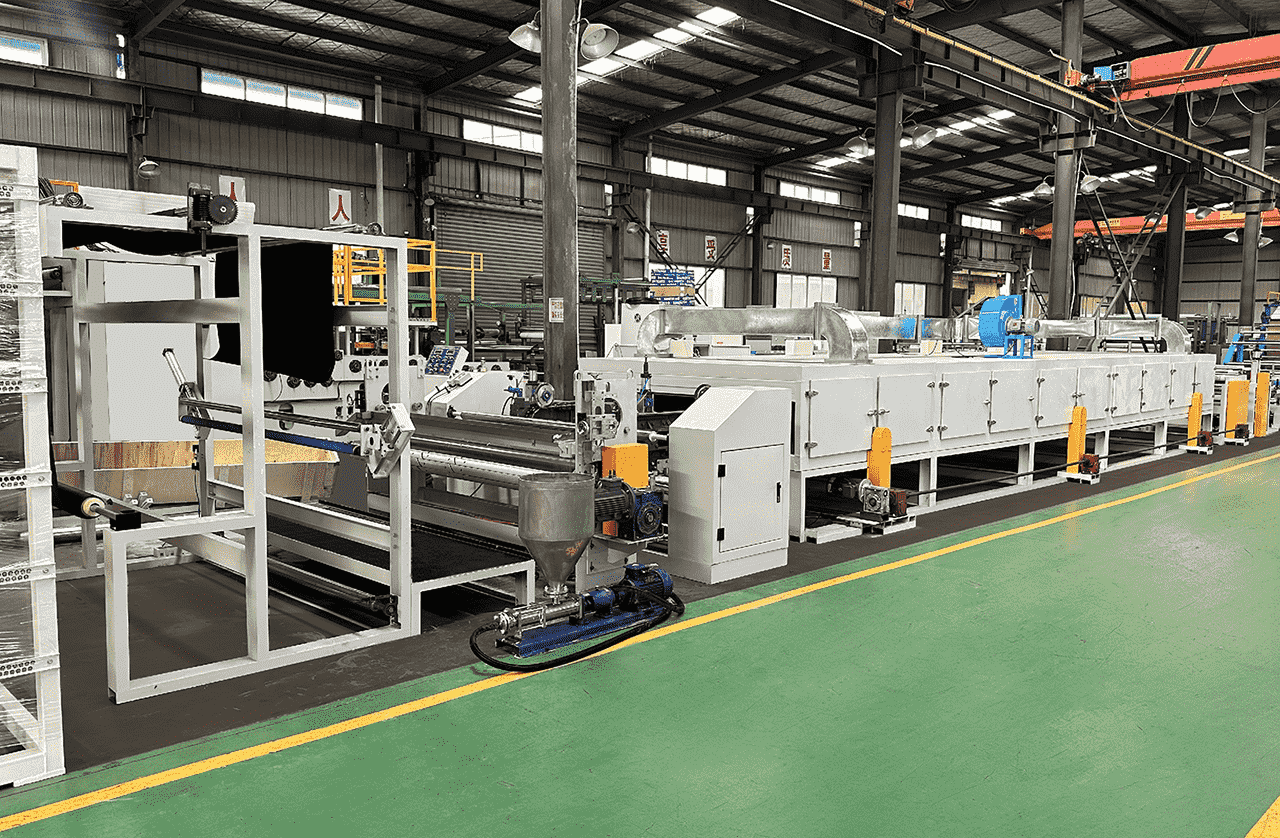

KUNTAI Silicon/ PVC/ plastic dot coating machine including Base Fabric Unwinding Device,dot coating Device, needle plate raw material loading device, electric heating drying oven device, automatic needle removal device, air cooling and counting rewinding Device. It is suitable for silicon/PVC dot coating on to nonwoven, felt, fabric and other materials for non-slip purpose. It is widely used in sofa fabric industry、Interlining for cloth industry， shoe industry, out door goods, medical industry、mattress protector industry, curtain fabric industry, automotive trim Industry,Hygiene and medical products，Protection clothes, etc.

* Machine is easy to operate, with wide gluing width, precise glue amount adjustment, save glue.

* Different conveyor system can be choosed based on different basic materials.

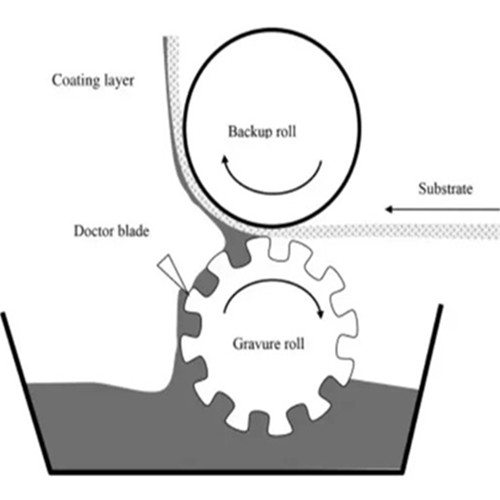

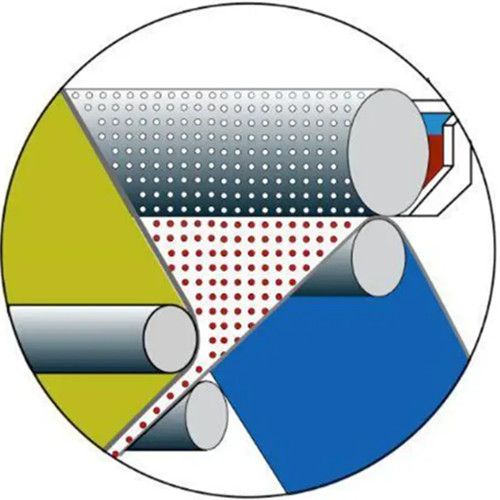

1.Main working process: hydraulic edge alignment raw material feeding-screen dot coating-needle plate raw material loading-needle plate stenter going to electric heating drying oven for dot drying-automatic needle removal-air cooling-counting and rewinding. dot coating2bvu

2.roller to get different coating patterns.
3.Machine working width can be from 1600-4600mm, can meet different width requirements.
4.With electric heating oven, the plastic dot can be drying evenly and fast.
5.Needle plate type conveyor belt is available, so that the basic material edge will be fixed well and materials widths will keep same after heating and drying.
6.Special tension control device and edge guiding device can be add for stretch fabric.
7.Transmission mode: frequency conversion synchronous control, PLC touch screen operation can be upgraded.
8.Chemical formula can be provide if needed.

Machine Technical Parameters

Model:	KT-1800
Maximum Material Width:	1600-4600mm
Machine Roller Width:	1800-4800mm
Heating oven length:	15m
Machine speed:	5-20m/min
Power:	100-300KW
Electric Current and Voltage:	Customizable
Net Weight:	11000KGS
Dimension:	30000 x 4000 x 2100mm
Transmission：	Inverter
Motor:	Siemens
Electric:	Schneider

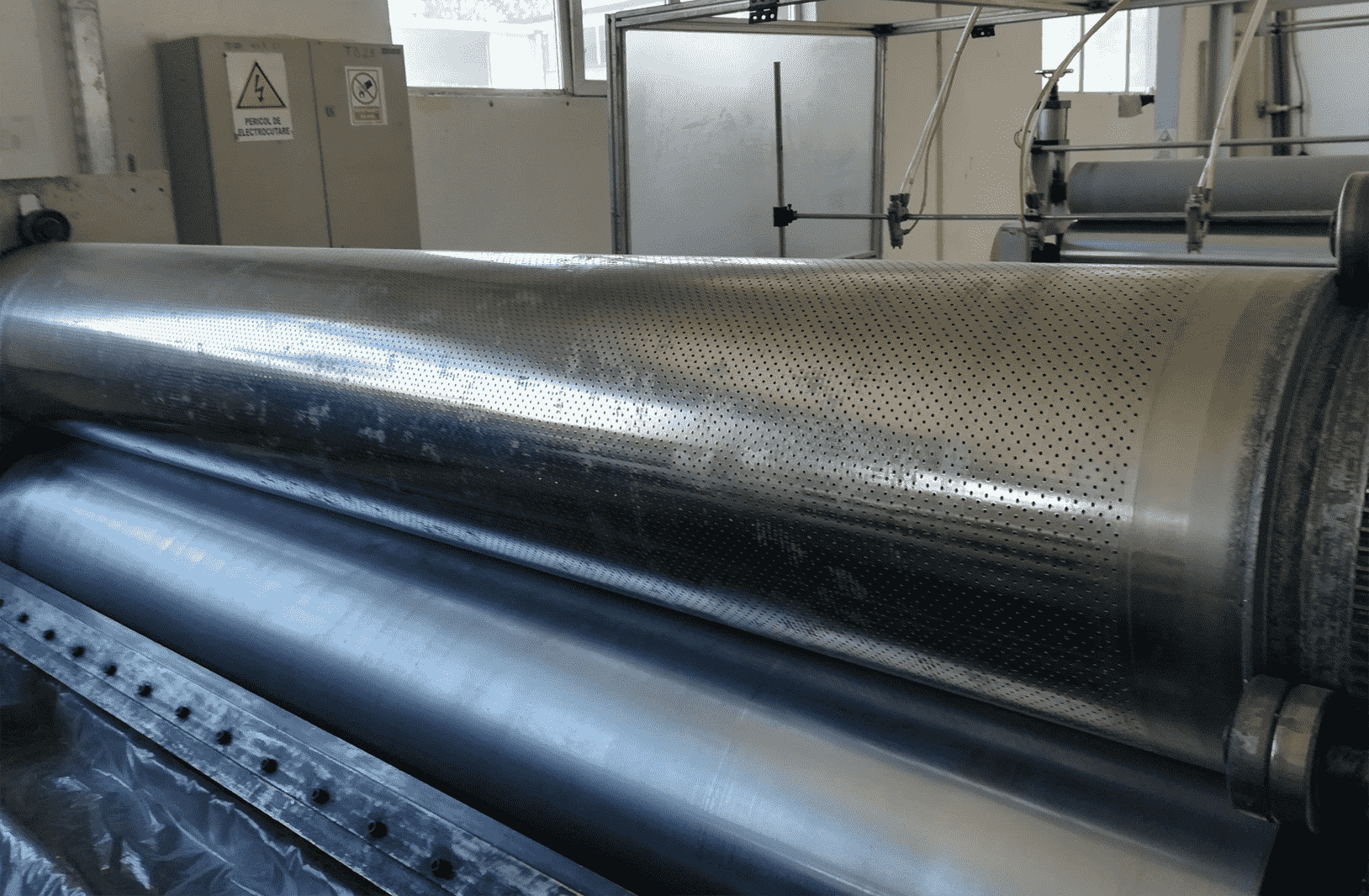

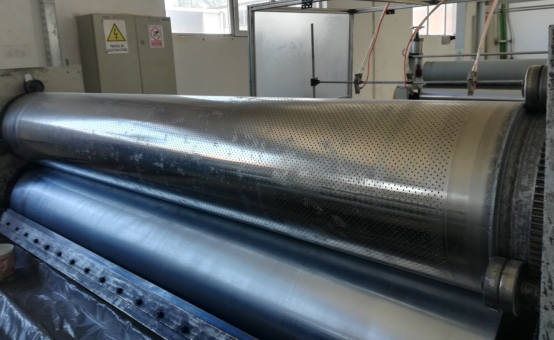

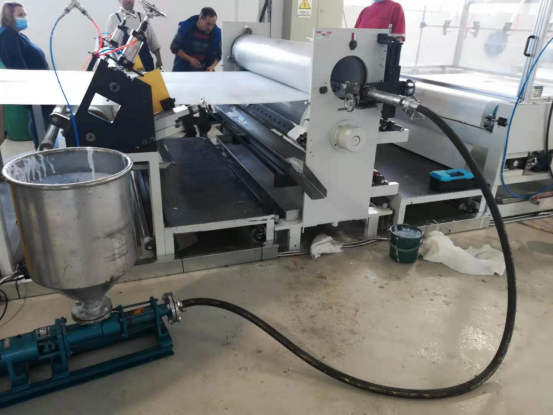

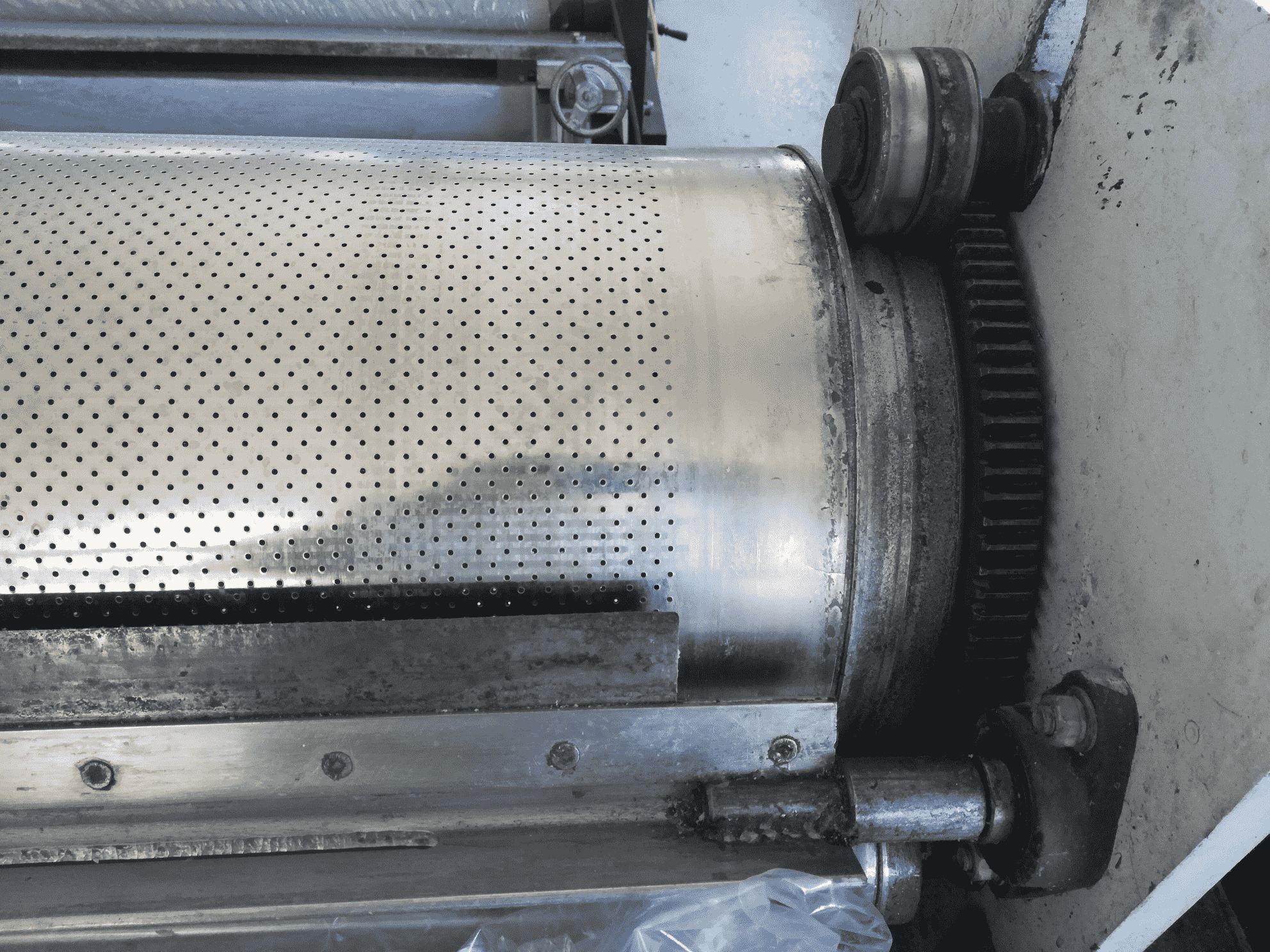

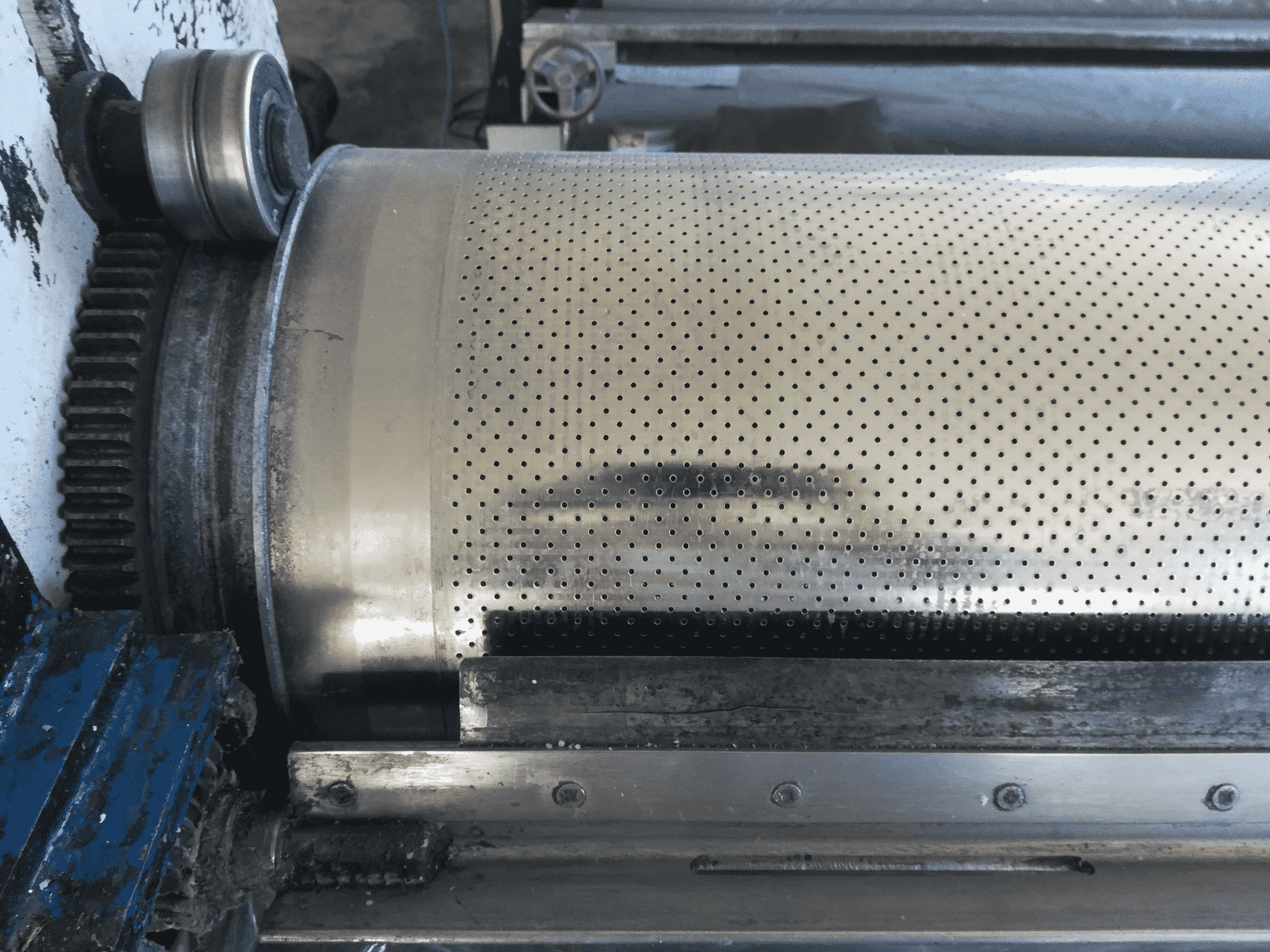

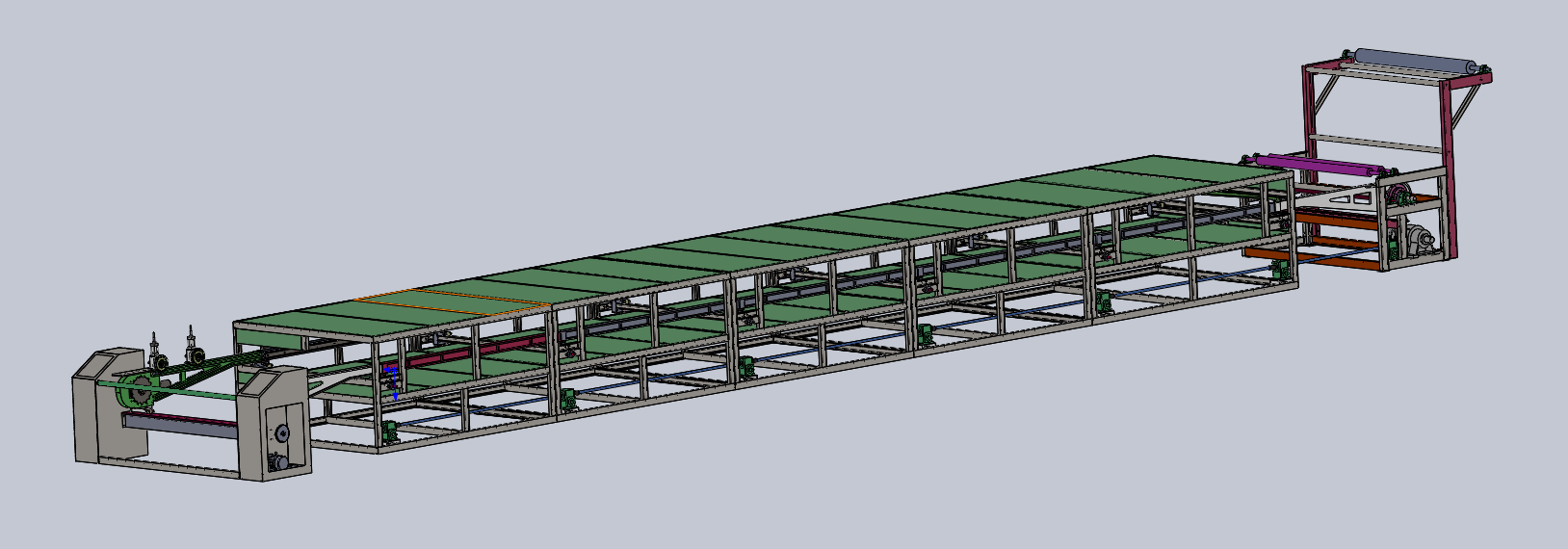

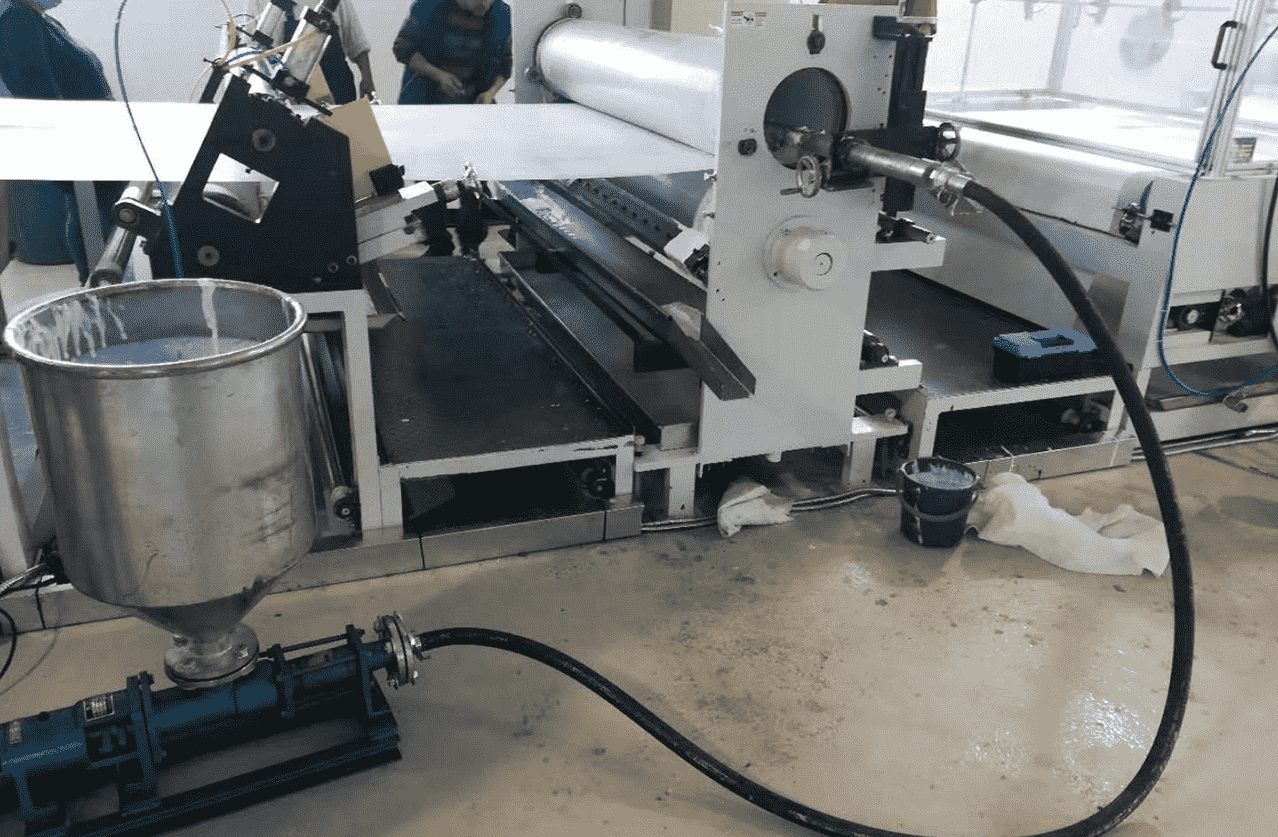

Machine drawing & pictures

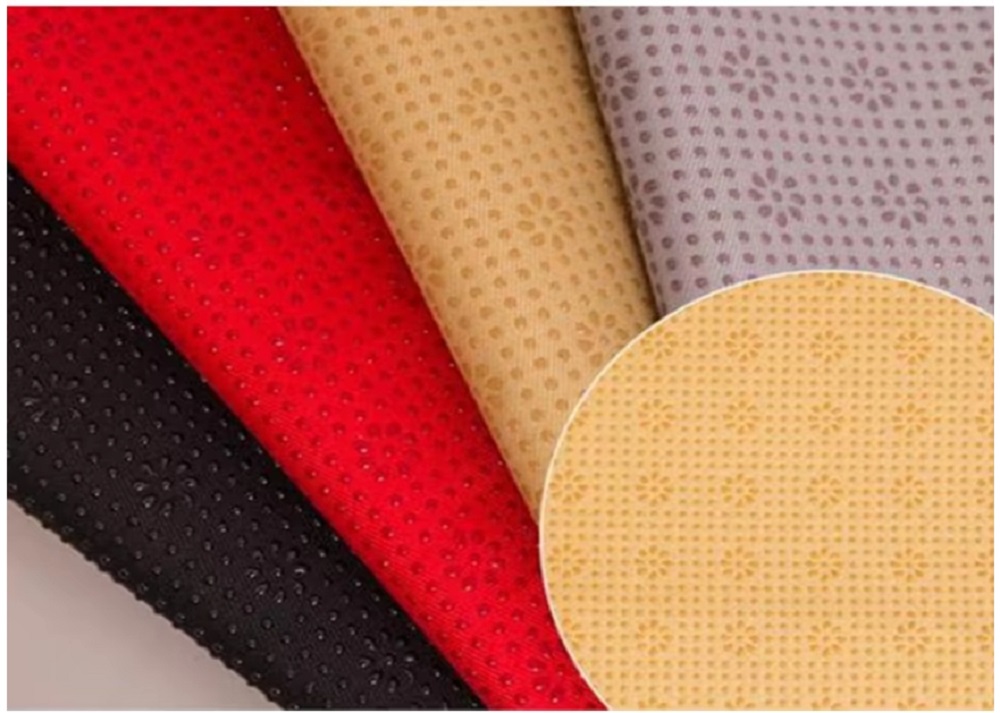

Application

38g3 2222c6h 111115xp

Why choose us

1,Historical precipitation technological innovation. 40 years of rich experience for various industries to provide laminating machine, cutting equipment, bronzing machine and other industry solutions.
2,Globalization after sales Covering 5 continents with over 60 countries complete after sales service, no matter where you are, kuntai's service time is at your side.
3,Industry-specific customization A strong team of engineers will make the best one-to-one customization for your product requirements to maximize the advantages of your product equipment.
4,Strong technical support. The technical support of southeast university, the practice training of German engineers, and the team of dozens of experts are the technical guarantee for you to purchase the machine in kuntai.
5,High quality standards. The IOS system certification, the eu CE certification and the us UL certification are the quality assurance for us. CTPM refined management is our guideline for high quality standards.
