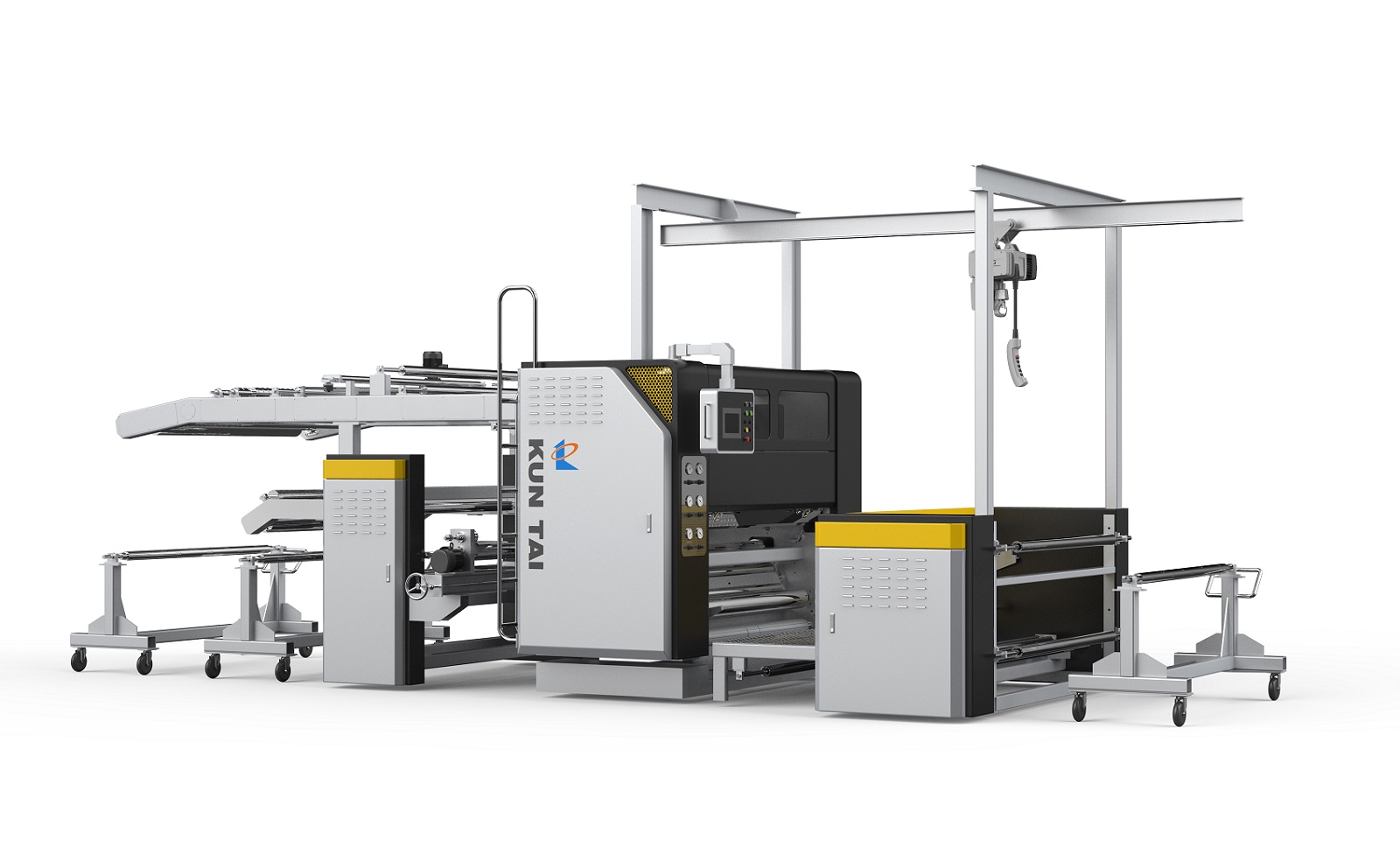

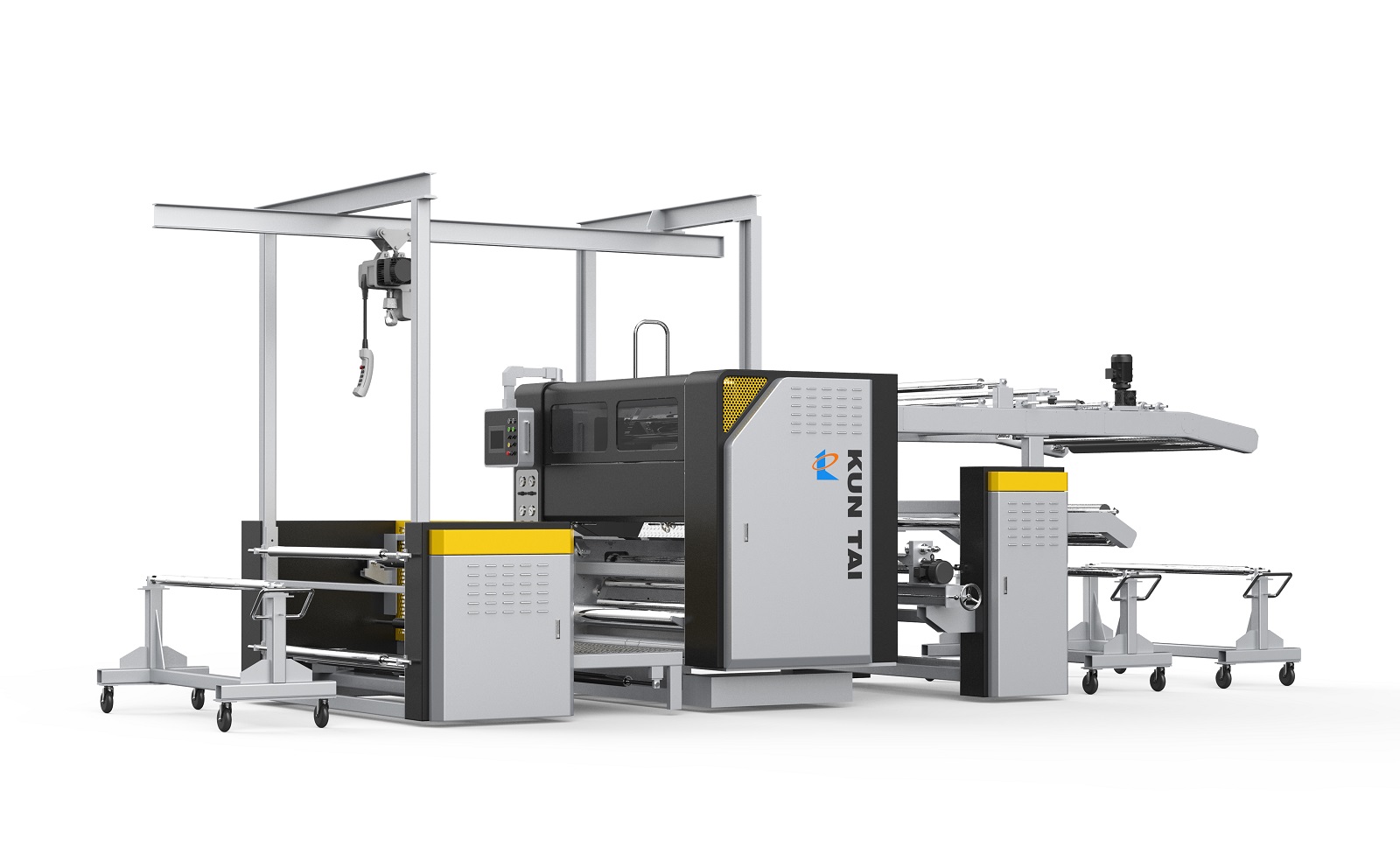

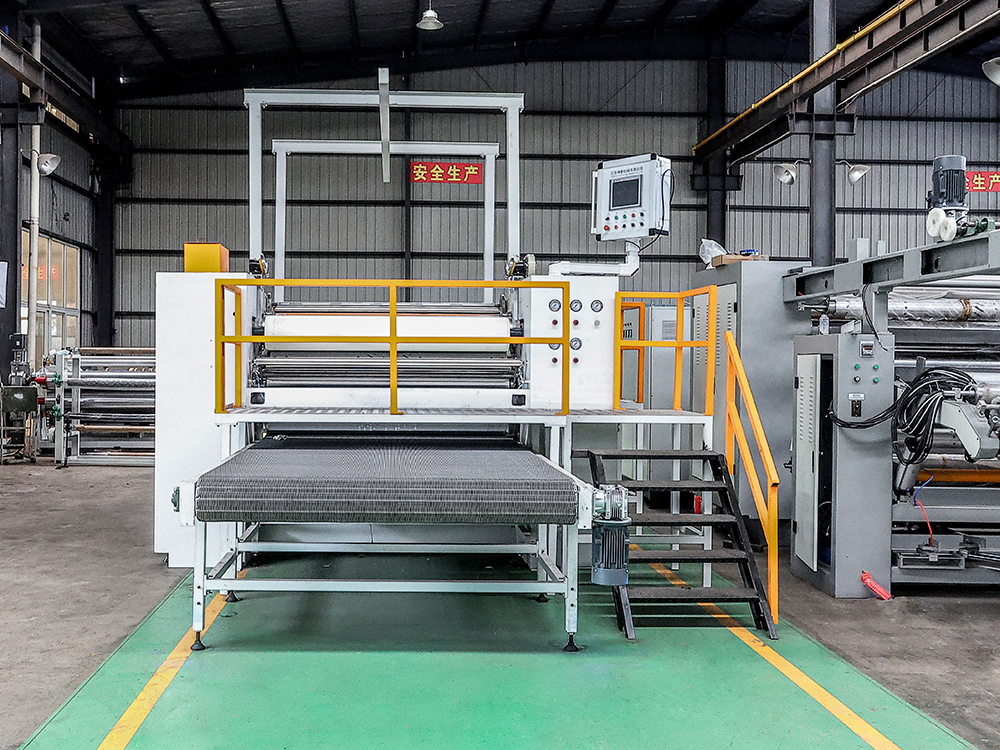

PLC Control Automatic PUR Hot Melt Adhesive Fabric Laminating Machine

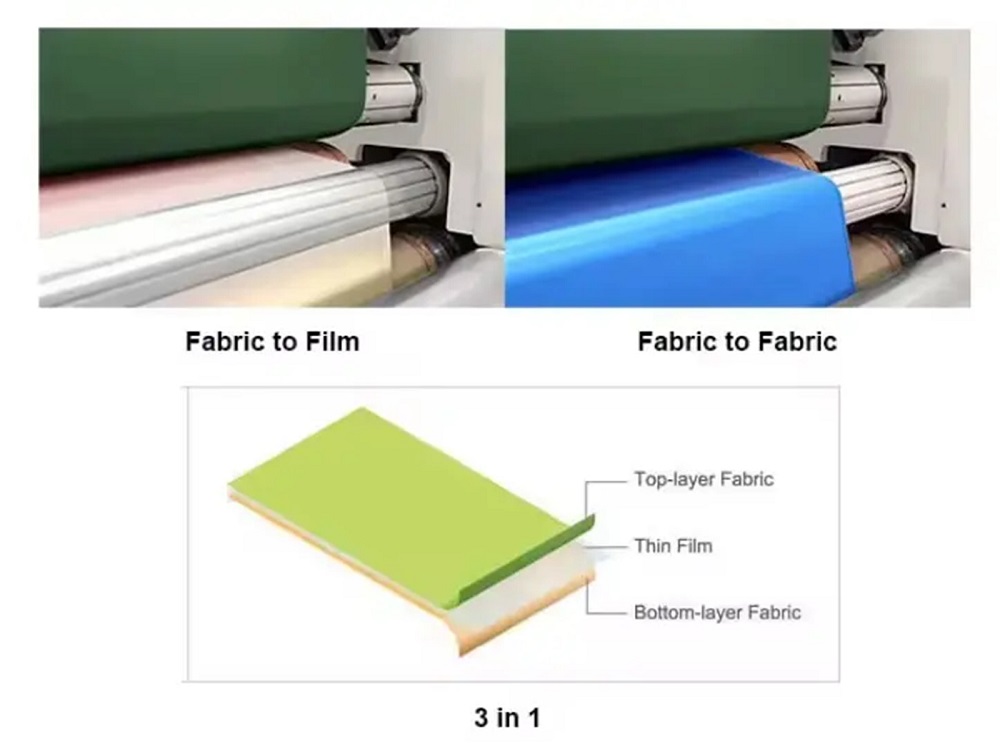

Introducing the Hot Melt Glue Laminating Machine from Jiangsu Kuntai Machinery Co., Ltd. This advanced machine is specifically designed for fabric and fabric, fabric and film laminating, offering a highly automated and compact solution for various manufacturing needs. The machine is equipped with fabric unwinding and rewinding units, fabric transmission systems, fabric tension controller, film unwinding and film carrier rewinding device, Hot melt glue applying system, as well as optional hot melt glue melting unit, pump, conduction oil source system. Additionally, the machine features a laminating device, cooling device, PLC, and other essential components. With its high efficiency, precision, and ease of maintenance, this Hot Melt Glue Laminating Machine is an ideal choice for textile materials laminating in many industries.

Motor Siemens
PLC Siemens
Electric Schneider
Inverter Yaskawa

Laminating Machine Introduction

1) hot melt adhesive, a game-changing product designed to change the way lamination is done. Hot melt adhesive is no ordinary adhesive; it is a sustainable and environmentally friendly solution designed to meet the growing demand for eco-conscious products.

2) With growing concerns about sustainability and environmental impact, hot melt adhesives offer unique advantages. It can produce environmentally friendly products by eliminating contamination during the lamination process. This means manufacturers can now produce laminated products without harming the environment, making them ideal for companies looking to reduce their carbon footprint and meet the needs of eco-conscious consumers.

3) Equipped with a state-of-the-art PLC system and a user-friendly touch screen interface, this machine is incredibly easy to operate. The intuitive controls allow for seamless programming and monitoring of the machine’s functions, making it suitable for both experienced operators and those new to industrial machinery. The modular design of the machine ensures flexibility and adaptability to various production needs. Its versatile structure allows for easy customization and expansion, making it a cost-effective solution for businesses of all sizes. Whether you need to increase production capacity or adapt to changing production requirements, this machine can be easily modified to meet your specific needs.

4) Advanced edge alignment and correction devices improve the degree of automation, save labor costs, reduce labor intensity, and improve production efficiency

When it is applied in lamination of functional waterproof moisture permeable films such as PTFE,PE and TPU, more materials which are waterproofing and insulated, waterproof and protective and oil-water filtering will even be invented. hot melt glue laminating machine66j

Machine Features

PLC Controlled with HMI.

Machine is controlled by PLC with high level of

automation.It is very easy to operate and save labors
Thermoplastic and reactive hot melt adhesives.

Suitable glue type: EVA hot melt glue,PUR hot melt glue,etc.
Full coating function optional.

Different gluing methods can be choosed as requirements, like dot coating, diamond coating, mesh coating and full coating, etc
Famous brand motors and inverters

Main parts of machine are all famous brand, such as siemens motor, Schneider electric, Yaskawa inverter,etc
Low maintenance cost

With compact machine structure, machine needs low maintenance cost.
Excellent tension control

for 4-way stectch fabric, can add more edge guiding device and conveyor belt system for smooth feeding.
Servo motor for gap adjustable. machine gao is controlled by servo motor, improving the machine accuracy.

Components of Laminating Machine

Hot melt glue laminating machine typically consists of several key components that work together to facilitate material feeding, gluing laminating and products rewinding These components may include:

1) Unwinding trolley: mainly consisted of pneumatic shaft, safety chuck, farmar brake, aluminum alloy fabric guiding shaft, to achieve constant tension unwinding.

2) Fabric feeding & conveying and tension control unit: mainly consisted of active feeding rubber roller, aluminium alloy guiding roller, hydraulic edge alignment system, to achieve constant tension feeding and keep the edge in order.

3) Active film feeding unit: mainly consisted of active feeding rubber roller, pneumatic shaft, silicone article fabric opener, motor, inverter, it is used for film synchronous active feeding.

4) Film Carrier Reclaimer: mainly consisted of pneumatic shaft, motor, inverter, etc, it is used for film carrier reclaim.

5) Tension controlling before gluing: mainly consisted of swaying arm type tension controller with angular transducer, to ensure the material with constant tension before gluing.

6) Glue melt unit: there is one 200L PUR glue melter together with the machine, the speed is about 120kg/h, the glue amount is 10-120kg/h.

7) Conduction oil heating system: There is one 18kw oild heater together with the machine, it heats the oil by heating tubes, then pump the hot oil to the equipment.

8) Hot melt glue dot transfer device: mainly consisted of dot shape gluing roller which can add oil inside, steel knife which can add oil inside, steel scraper, silicone roller with cooling, glue stopper(gap is adjustable), cylinder (the one adjusting the gap between scraper and gluing roller ) turnover device, gluing washing channel, motor drive device, etc. It is used to transfer the hot melt glue onto the fabric in dot form and keep the glue melting at the same time.

9) Laminating unit: mainly consisted of pressing roller with cooling device, pressing rubber roller, pressing cylinder and gap between two rollers adjusting device. It is used for laminating two layers of fabric visa the pressure from steel roller and rubber roller.

10) Cooling roller: mainly consisted of two water cooling rollers, inverter, It can rapidly cool down the laminated materials .

11) Edge cutting device: mainly consisted of two cutting knives(in both left side and right side), it used for laminating products edge cutting, the width can be adjusted by screw.

12) Rewinding tension controlling device, mainly consisted of swaying arm type tension controller with angular transducer, to ensure the laminated material with constant tension before rewinding.

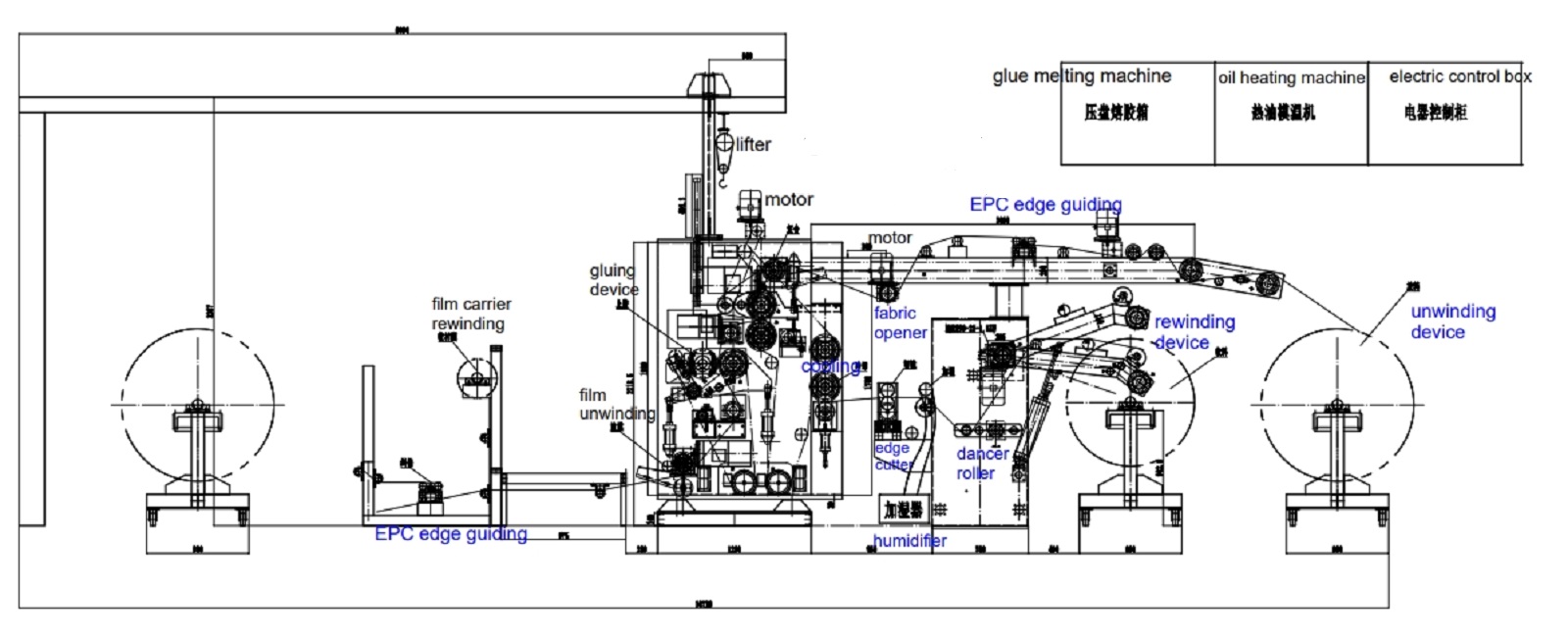

laminating machine drawingvmj
