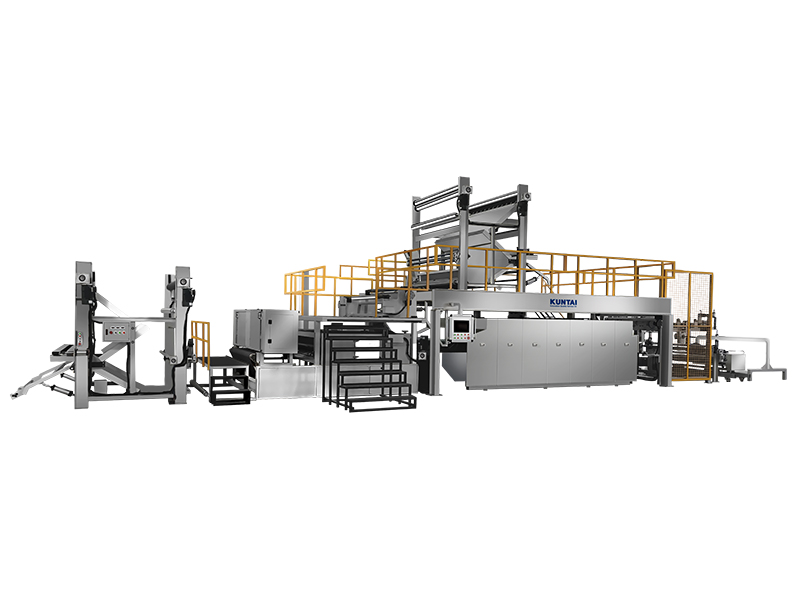

Flatbed laminating machine

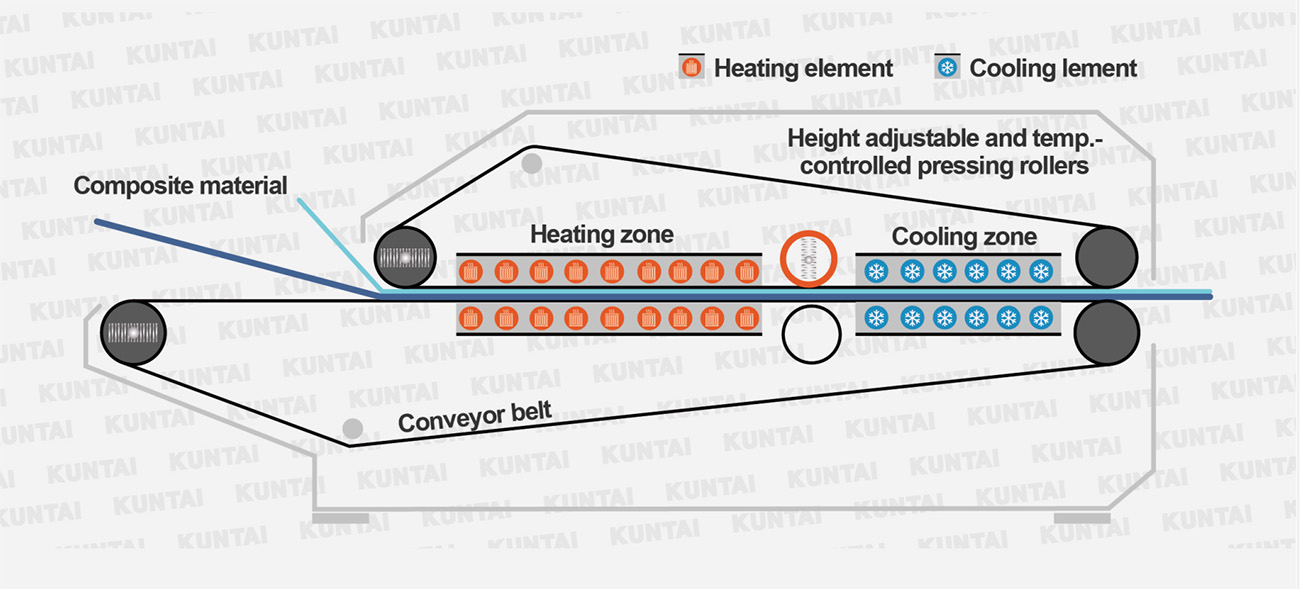

Flatbed Lamination Machine systems are double belt presses with integrated contact heating and cooling systems. It is designed for laminating of a wide variety of materials such as fabric, nonwovens, foam, leather ,etc.

It is also widely used in the high and new tech materials industry, such as fiber reinforcement, aerospace, ballistics, filter materials, sound insulation materials and honeycomb materials, etc.

PLC Controlled with HMI
3m heating zone and 1.5m cooling zone(available upon request)
Smooth seamed PTFE coated fiberglass belts
Spring-mounted elements
0-150mm gap adjustable

Product Advantages

The modular design of the double belt press provides flexibility in production processes.
The height is precisely adjustable.
Cooling zone will enhance the bonding of laminated materials.
Multilayers of materials can be laminated with the media of hot melt film or hot melt powder by heating in one step, greatly improving production efficiency.
Advanced edge alignment and scothing devices, this machine increases the degree of automation, saves labor costs, relieves labor intensity, and enhances production efficiency.
The even and constant temperature control ensure reliable and reproducible results, minimizing variations and defects in the final output.

✱ In conclusion, the benefits of using a double belt press in industrial production are evident. Its efficiency, cost-effectiveness, consistent quality, versatility, and flexibility make it a valuable asset for businesses across different industries. By investing in a double belt press, companies can enhance their production capabilities, reduce costs, and achieve sustainable and reliable manufacturing processes.

Main Machine Parameters (Customizable)

width(mm) available upon request	1,700	1,900	2,100	2,300	2,500	2,700	2,900
Height adjustment	0-150 mm	0-150 mm	0-150 mm	0-150 mm	0-150 mm	0-150 mm	0-150 mm
Heating zone(mm)	3,000, expandable in 1,500 mm steps	3,000, expandable in 1,500 mm steps	3,000, expandable in 1,500 mm steps	3,000, expandable in 1,500 mm steps	3,000, expandable in 1,500 mm steps	3,000, expandable in 1,500 mm steps	3,000, expandable in 1,500 mm steps
Colling zone(mm)	1,500, expandable in 1,500 mm steps	1,500, expandable in 1,500 mm steps	1,500, expandable in 1,500 mm steps	1,500, expandable in 1,500 mm steps	1,500, expandable in 1,500 mm steps	1,500, expandable in 1,500 mm steps	1,500, expandable in 1,500 mm steps
Control zones(number)	18	18	18	18	18	18	18
Running speed(m/min)	0.5-30	0.5-30	0.5-30	0.5-30	0.5-30	0.5-30	0.5-30

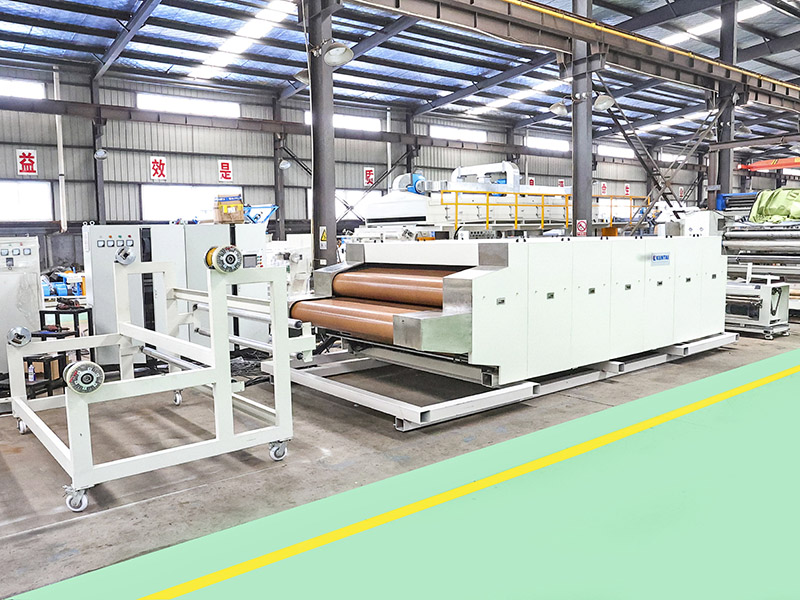

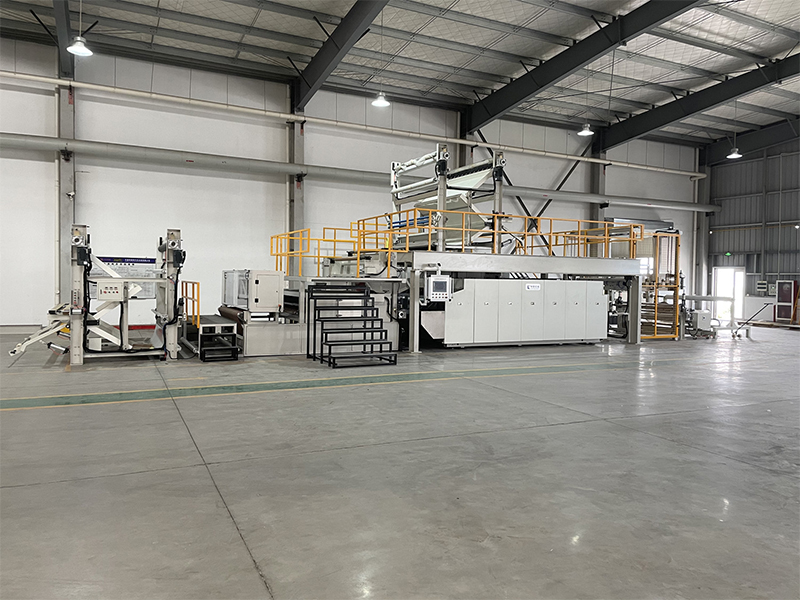

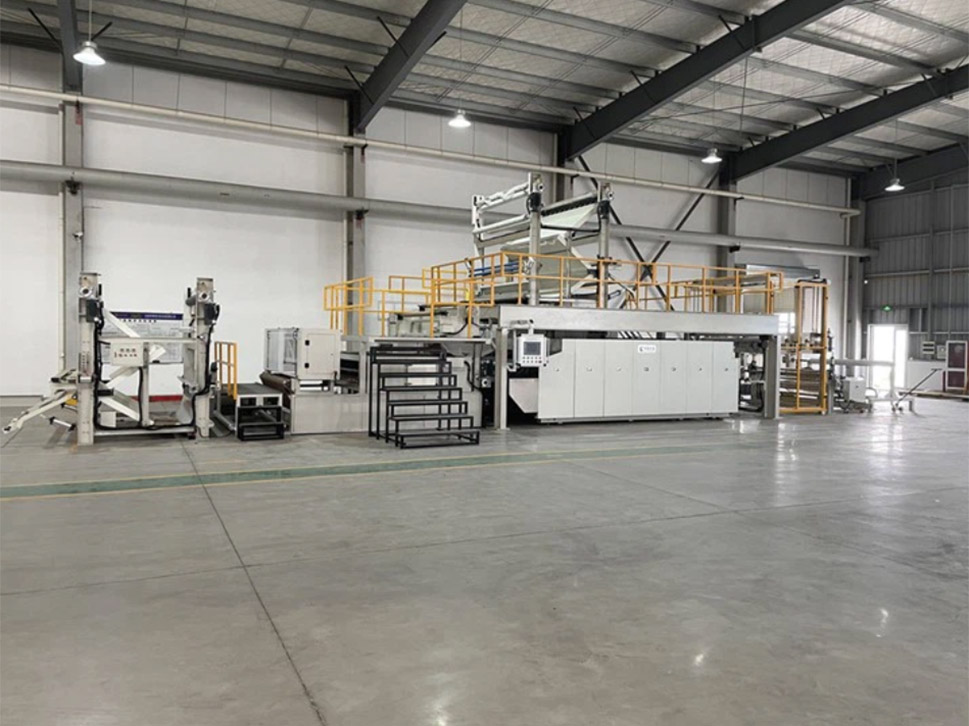

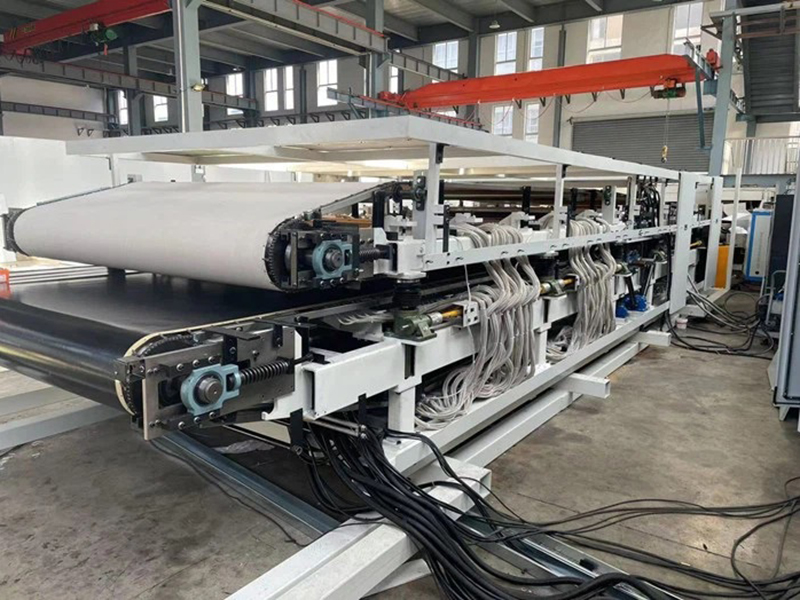

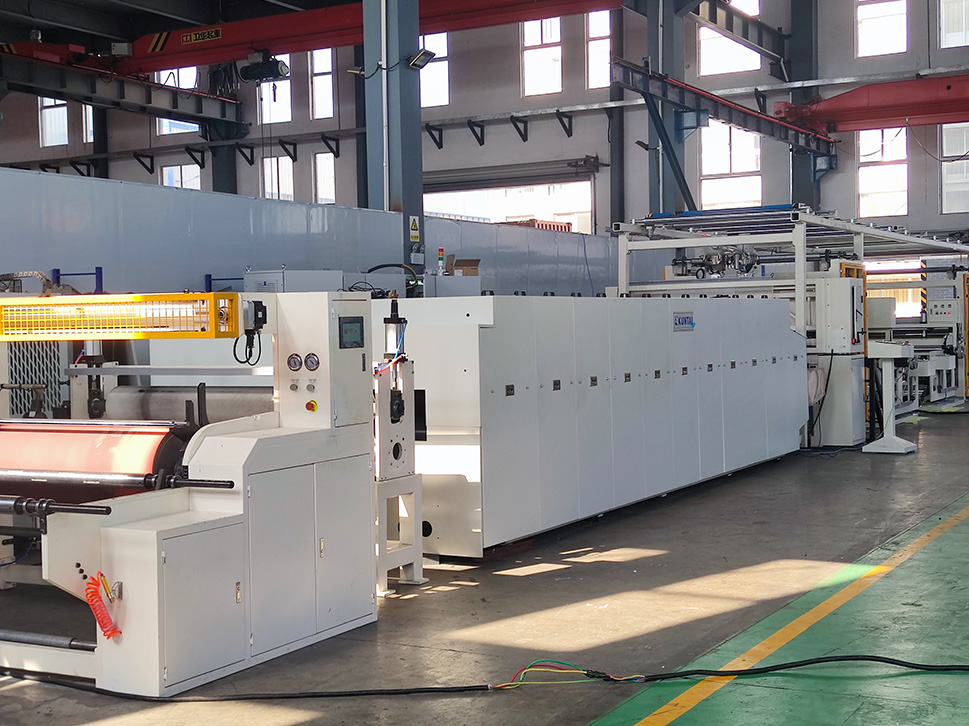

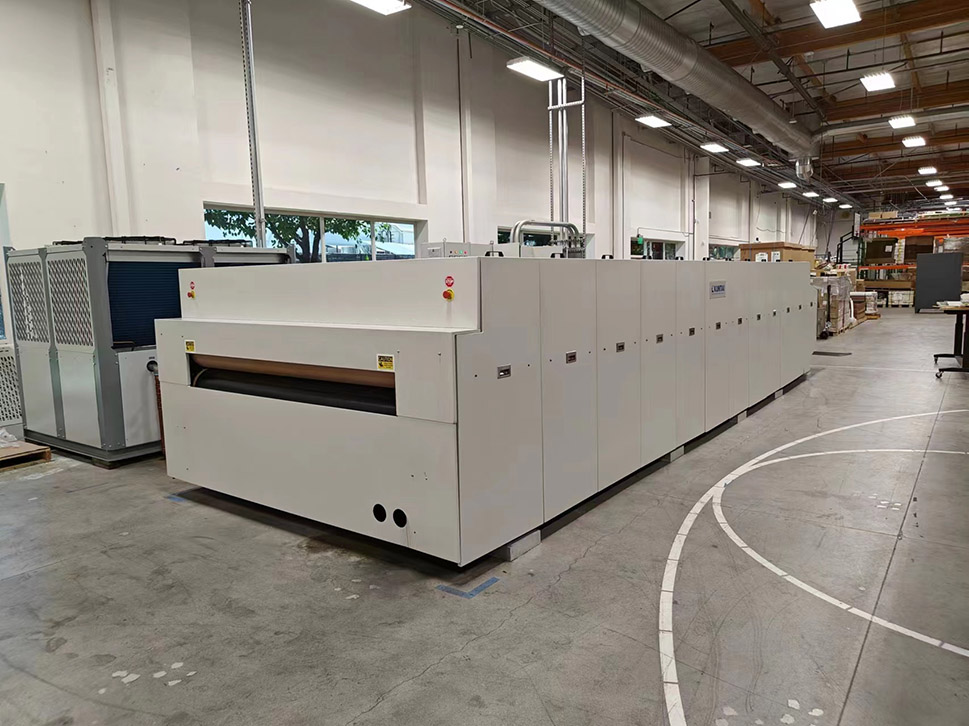

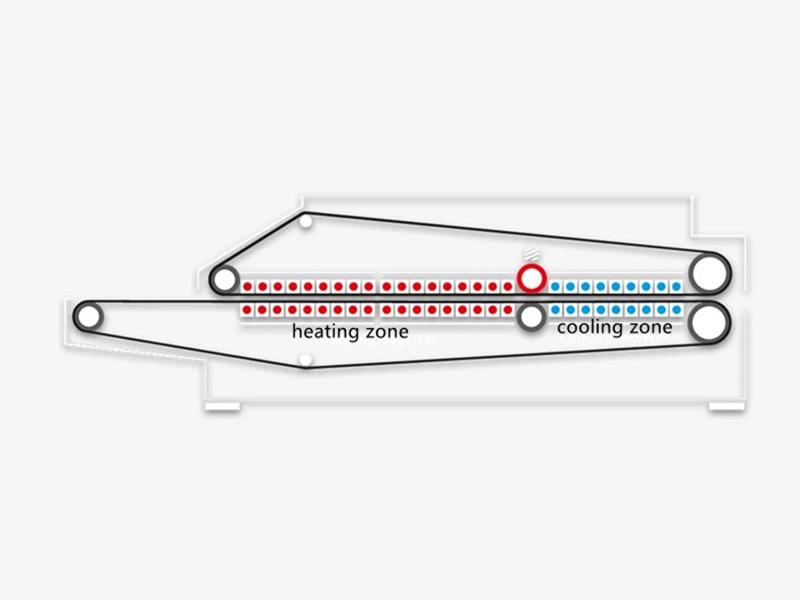

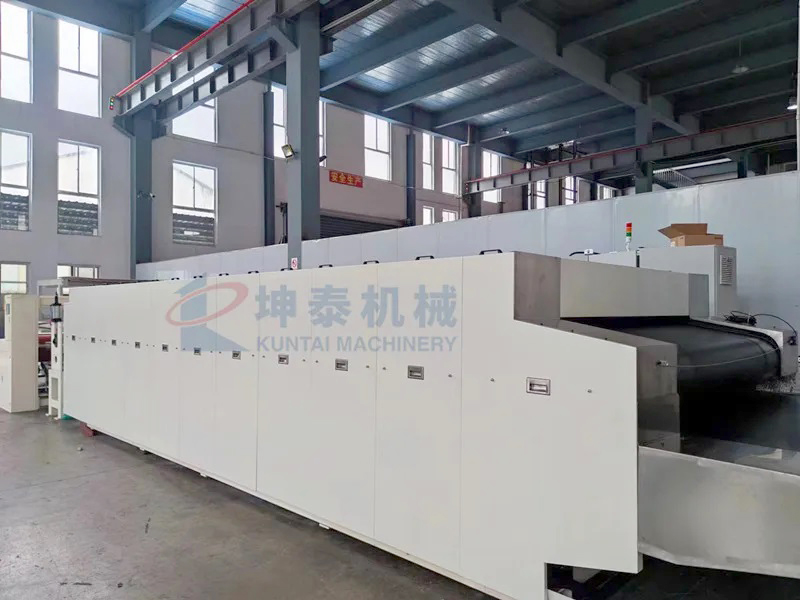

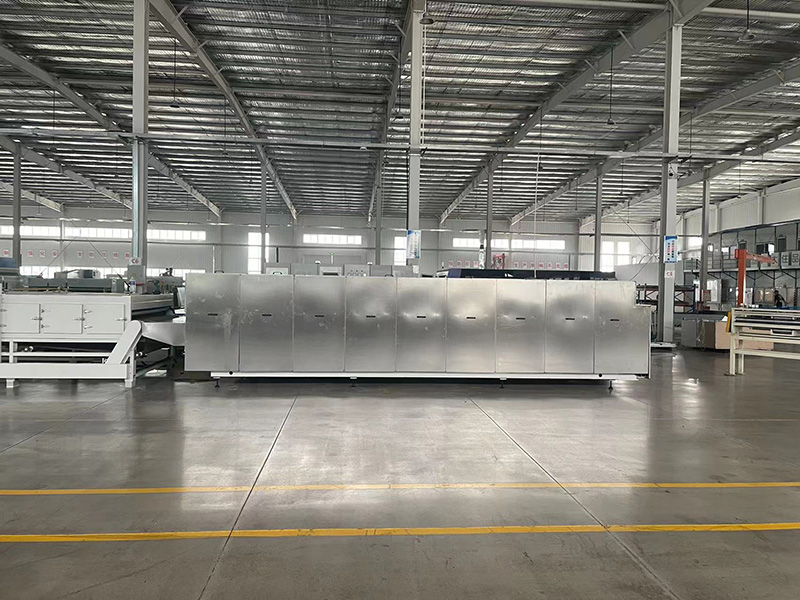

Machine Drawing & Pictures

Application

Automotive

Seat heating lamination, vehicle roof, insulation reinforcement roof boards.

Filter Industry

Activated carbon filter, filtration media.

Carbon fiber fabric & Glass fiber composites

Honeycomb Panel Materials

UD Fabric

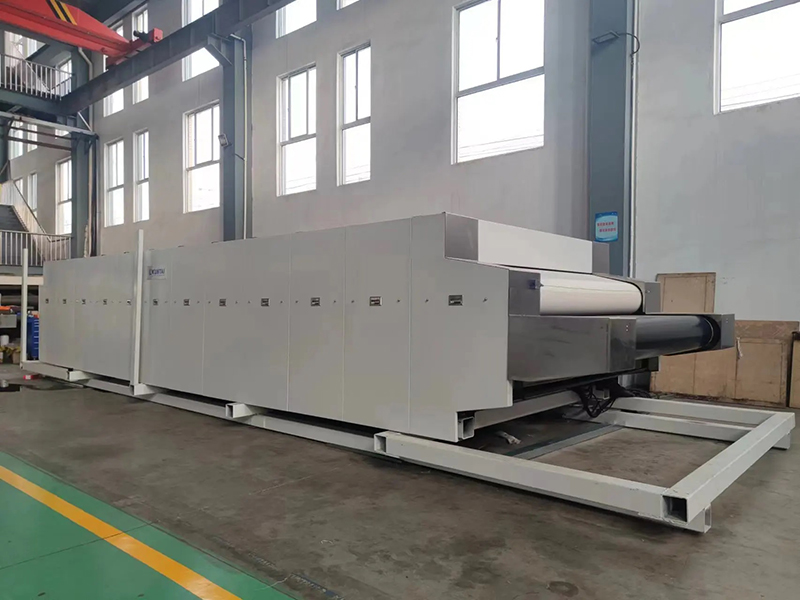

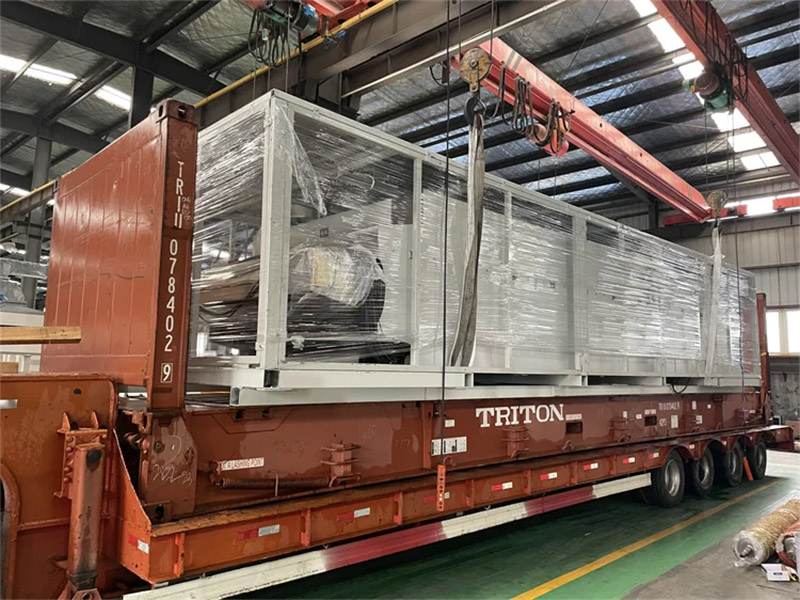

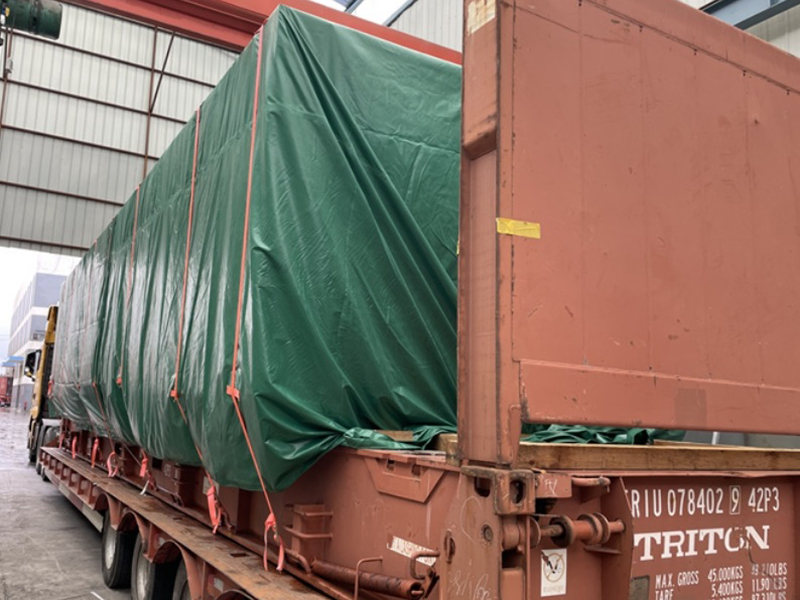

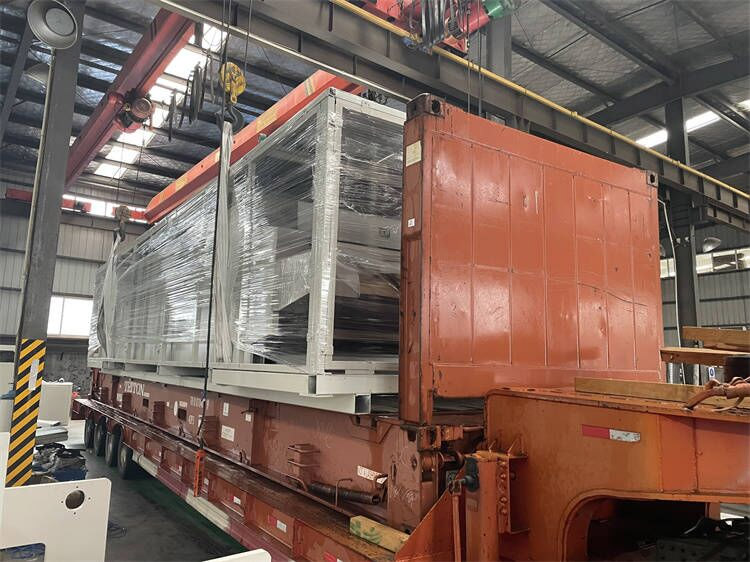

Machine Delivery

Factors To Consider When Choosing A Double Belt Press

When it comes to choosing a double belt press for your industrial production needs, there are several factors that should be taken into consideration. By carefully evaluating these factors, you can ensure that you select the right press that will meet your specific requirements and deliver optimal results.

Production Capacity

The first factor to consider is the production capacity of the double belt press. You need to determine the volume of materials you will be processing and choose a press that can handle your desired output. Look for a press with a high nominal capacity to ensure efficient and uninterrupted production.

Flexibility and Versatility

It is important to assess the flexibility and versatility of the double belt press. Consider the range of materials you will be working with and ensure that the press can accommodate different types and sizes. Look for features such as adjustable belt speed and press force to cater to varying production needs.

Quality and Efficiency

A key consideration is the ability of the double belt press to deliver high-quality and efficient results. Look for features such as even laminating, constant temperature control, and reliable reproducibility. These factors will ensure consistent and superior output, reducing waste and maximizing productivity.

Cost-effectiveness

Evaluate the cost-effectiveness of the double belt press by considering factors such as material, energy, and labor costs. Look for presses that offer savings in these areas, as this will contribute to the overall profitability of your production process.

Eco-friendliness

In today's environmentally conscious world, it is important to choose a double belt press that operates in an eco-friendly manner. Look for presses that employ continuous processes and minimize water consumption. This will not only reduce your environmental footprint but also contribute to sustainable and responsible production practices.

Estimate

By carefully assessing these factors, you can make an informed decision when choosing a double belt press for your industrial production needs. Remember to prioritize your specific requirements and select a press that offers the right combination of capacity, flexibility, quality, cost-effectiveness, and eco-friendliness. With the right press in place, you can enhance your production capabilities and achieve success in your industry.
