Double Belt Press Laminating Machine with Heating and Cooling modules

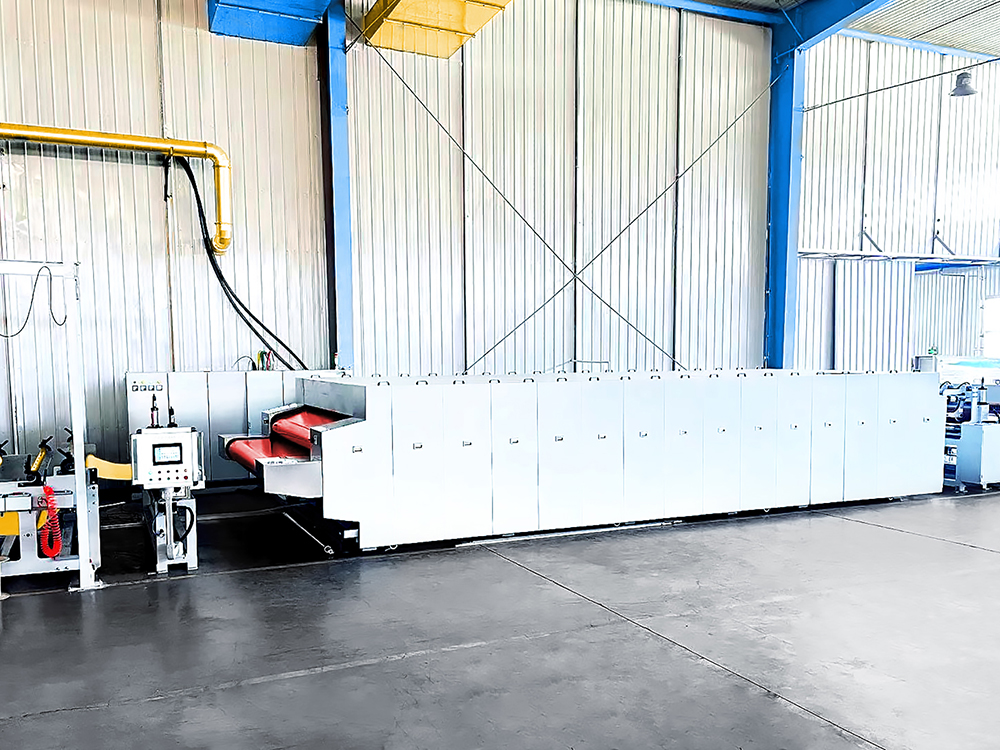

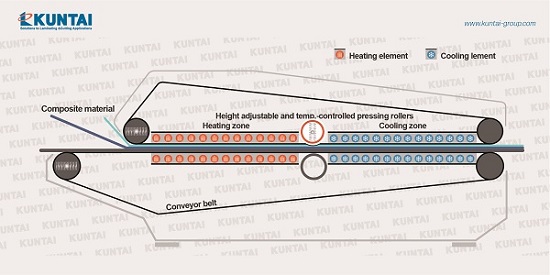

KUNTAI doulbe belt press laminating machine uses a stable frame structure to lay out the heating zone, cooling zone and adjustment mechanism , and realizes the laminating by temperature transfer and pressure intervention.
The equipment adopts the transverse aluminum internal heating tube to heat transfer the Teflon bearing belt, the laminating roller adopts chromium plated roller and rubber roller as well as cooling zone to achieve heat transfer, pressure laminating and cooling, it is suitable for high strength, high temperature laminating products continuous production operations.
Temperature control is set in three horizontal zones of a single heating rod.
Aluminum thermal profiles covered with heating area.
Teflon belt running with lateral spring tension on both sides.

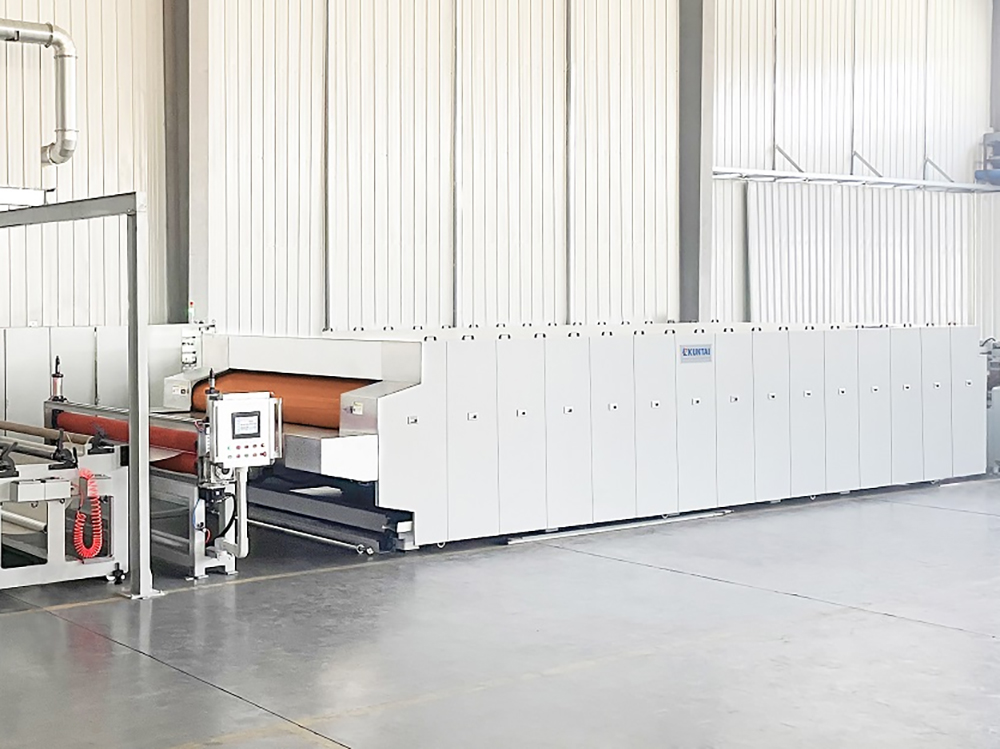

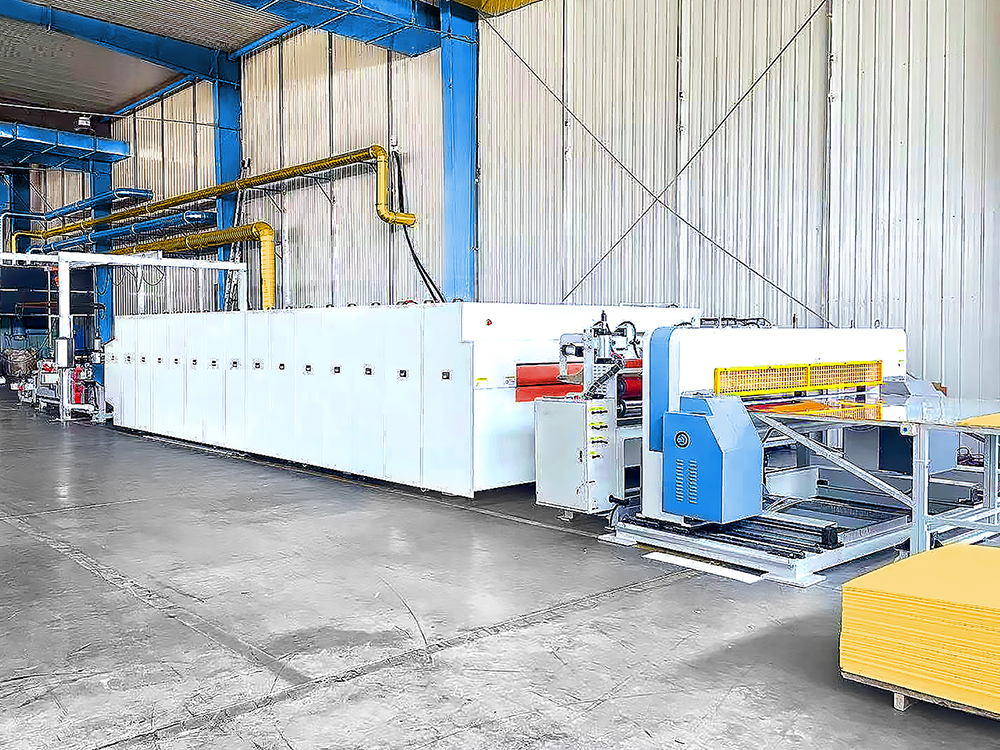

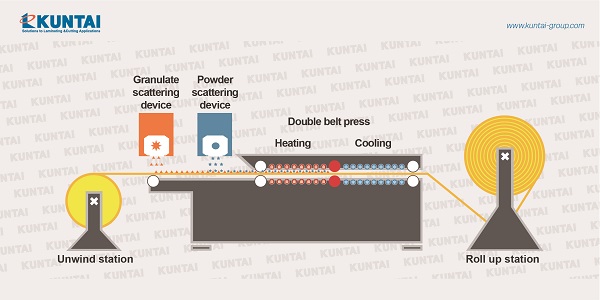

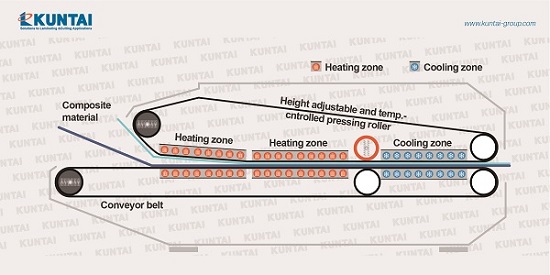

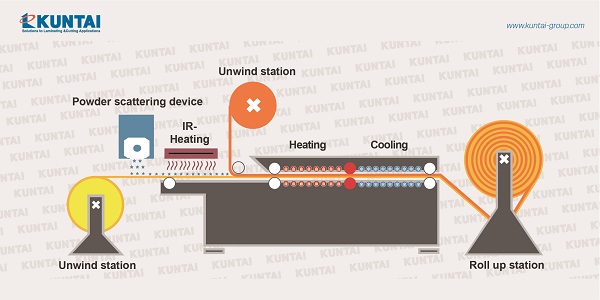

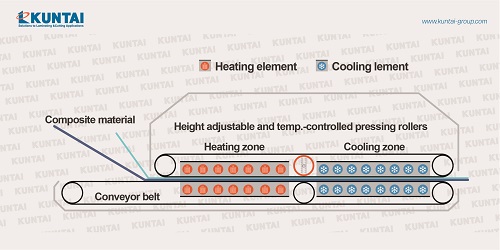

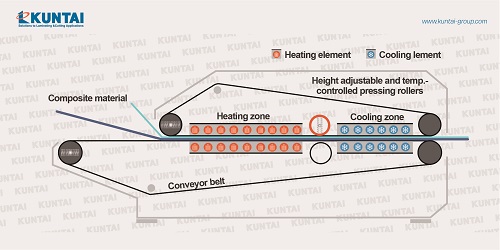

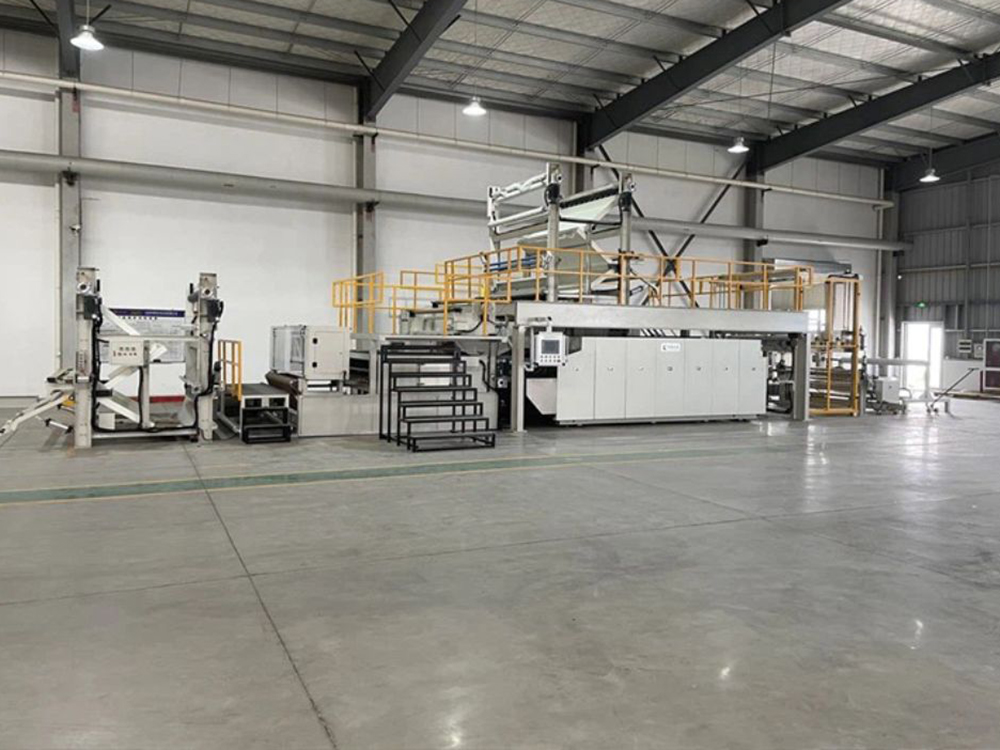

Depending on different material requirements, different glue types to choose, such as hot melt film, hot melt powder, etc, different variants of double belt presses are available, which are designed and equipped differently in terms of design. Such as the length of the heating zone and cooling zone, can add hot melt film unwinding device, hot melt powder scattering device, heating oven, and so on. Below are possible structure of double belt press:
Double belt press laminating machine is designed with safety features to protect the operator and minimize the risk of accidents. From the emergency stop button to the protective guard, every aspect of the machine has been carefully designed to prioritize user well-being, giving you peace of mind in the workplace. Laminating machine is PLC controlled, All relevant parameters can be set and controlled via proven SIEMENS touch screen. The modular design of the double belt press provides flexibility in production processes.
Machine features
-
PLC Controlled with HMI
Machine is Automatic controlled by PLC, can set main parametersthrough touch screen, it is easy to operate and save labors. -
3m heating zone and 1.5m cooling zone (available on request)
18 heating control areas with flexible arrangement of heatingelements, to ensure uniform and efficient heat distribution. -
Smooth seam PTFE coated fiberglass tape. conveyor belts runs Stable and steady during whole working process.
-
Sturdy frame construction. It ensures machine durability and stability, to perlong the machine sevice life.
-
0-150mm gap adjustable. The gap from upper and lower working area can be precised adjusted by servo motor.
| width(mm) available upon request | 1,700 | 1,900 | 2,100 | 2,300 | 2,500 | 2,700 | 2,900 |
| Height adjustment | 0-150 mm | 0-150 mm | 0-150 mm | 0-150 mm | 0-150 mm | 0-150 mm | 0-150 mm |
| Heating zone(mm) | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps |
| Colling zone(mm) | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps |
| Control zones(number) | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Running speed(m/min) | 0.5-30 | 0.5-30 | 0.5-30 | 0.5-30 | 0.5-30 | 0.5-30 | 0.5-30 |

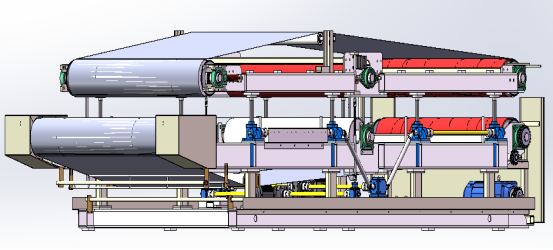

Machine Drawing & Pictures
More Applications

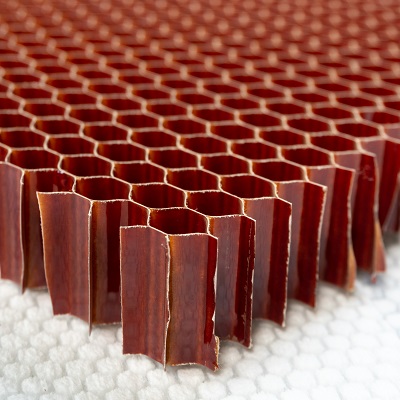

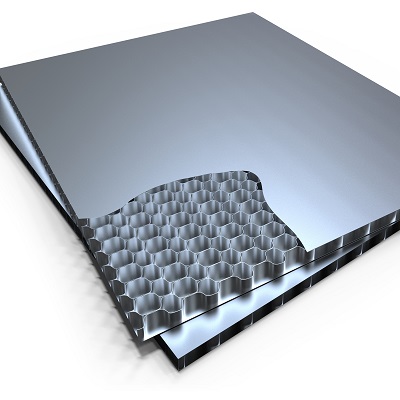

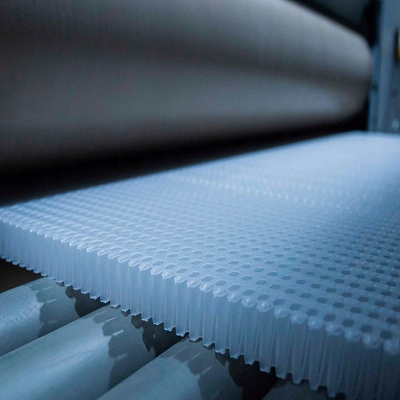

Except honeycomb panel, this double belt press also can be used for many others materials, such as continous fiber reinforced thermoplastic(CFRT)...
