Double Belt Press Laminating Machine for Aluminum Honeycomb Panel
1) The doulbe belt press laminator is equipped with advanced features to ensure superior performance and consistent results. Its dual-belt system allows for even pressure distribution, ensuring a smooth and even lamination process. This gives the aluminum honeycomb panels a perfect finish and enhanced structural integrity.
2) One of the main advantages of this machine is its versatility. It can accurately and efficiently laminate various types of materials, including aluminum panels and honeycomb cores. Whether it is building cladding, aerospace applications or the transportation industry, this machine delivers excellent results in different areas. The height is precisely adjustable. For differenct thickness of honeycomb panels, it can be adjust well.
3) The machine’s intuitive controls and user-friendly interface make it easy to operate, reducing the need for extensive training and minimizing the risk of errors. Its automation capabilities simplify the lamination process, increase productivity and reduce production time. This makes it ideal for manufacturers looking to optimize operations and meet tight production deadlines.
4) In addition to performance and versatility, dual belt press laminators are designed with durability and reliability in mind. It’s built with high-quality materials and precision engineering to withstand the rigors of continuous use in demanding industrial environments. This ensures long-term performance and minimal downtime, helping to improve overall operational efficiency.
5) Additionally, the machine is designed with safety features to protect the operator and minimize the risk of accidents. From the emergency stop button to the protective guard, every aspect of the machine has been carefully designed to prioritize user well-being, giving you peace of mind in the workplace.
6) The modular design of the double belt press provides flexibility in production processes
Overall, the Aluminum Honeycomb Panel Double Belt Press Laminator is a game changer in the field of panel lamination. Its advanced features, versatility, ease of use and rugged construction make it a valuable asset for manufacturers looking to improve the quality and efficiency of their production processes. With this machine, getting quality laminated aluminum honeycomb panels has never been easier.
Machine features
-
PLC Controlled with HMI
Machine is Automatic controlled by PLC, can set main parametersthrough touch screen, it is easy to operate and save labors. -
3m heating zone and 1.5m cooling zone (available on request)
18 heating control areas with flexible arrangement of heatingelements, to ensure uniform and efficient heat distribution. -
Smooth seam PTFE coated fiberglass tape. conveyor belts runs Stable and steady during whole working process.
-
Sturdy frame construction. It ensures machine durability and stability, to perlong the machine sevice life.
-
0-150mm gap adjustable. The gap from upper and lower working area can be precised adjusted by servo motor.
The doulbe belt press laminator typically consists of several key components that work together to facilitate material feeding, laminating and rewinding. These components may include:
1) Material feeding table: mainly consisted of machine frame, steel feeding rollers, etc. On this feeding table, plate materials will transmit in order.
2) Flatbed heating & pressing device: it is composed of both upper and lower Teflon belts, belt edge alignment device, heating tubes, Ø290 mesh belt rubber steel roller, screw elevator, servo motor, and so on. It is used for material unwinding. It is used of heating pressing and laminating of two layers of material
3) Product output working table: the finished products will come out to the output working table.
| width(mm) available upon request | 1,700 | 1,900 | 2,100 | 2,300 | 2,500 | 2,700 | 2,900 |
| Height adjustment | 0-150 mm | 0-150 mm | 0-150 mm | 0-150 mm | 0-150 mm | 0-150 mm | 0-150 mm |
| Heating zone(mm) | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps |
| Colling zone(mm) | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps |
| Control zones(number) | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Running speed(m/min) | 0.5-30 | 0.5-30 | 0.5-30 | 0.5-30 | 0.5-30 | 0.5-30 | 0.5-30 |

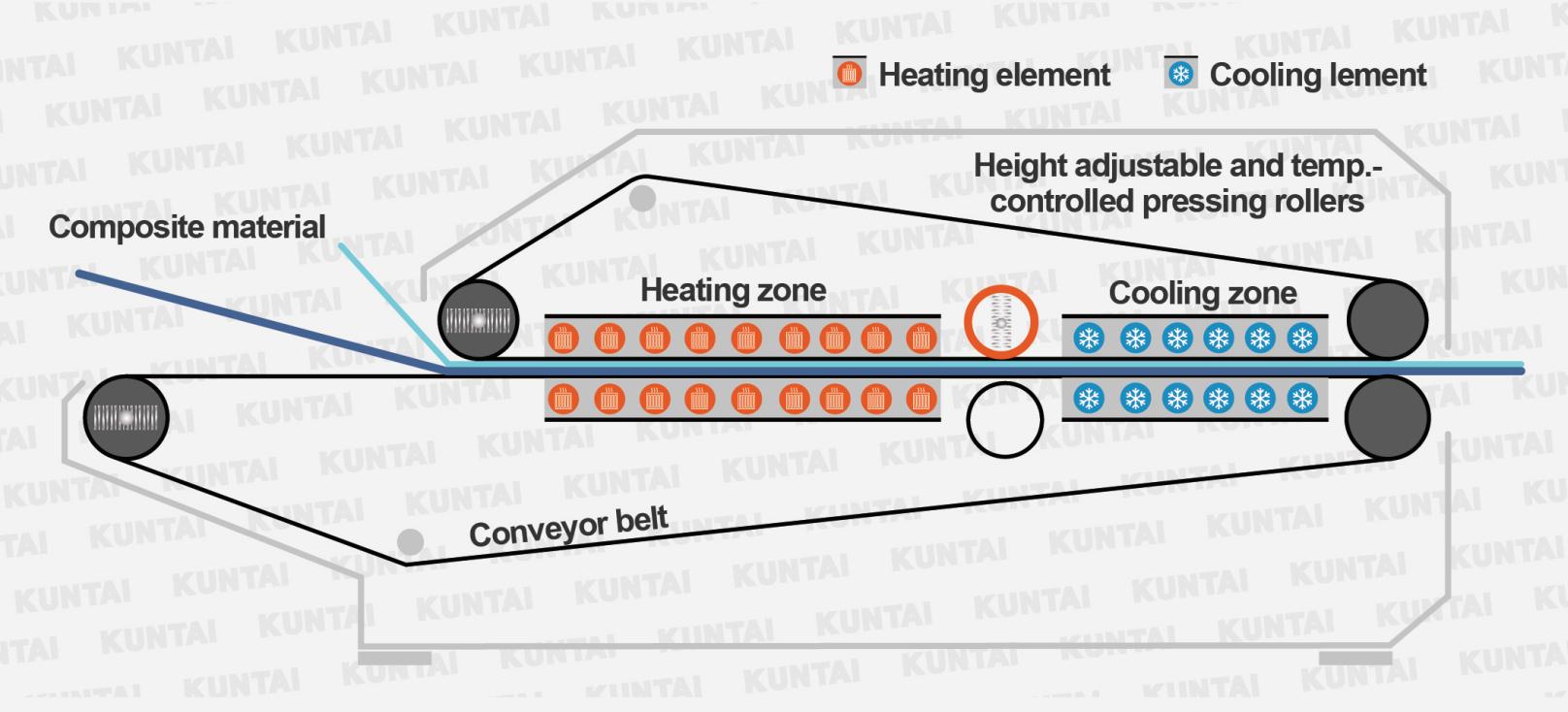

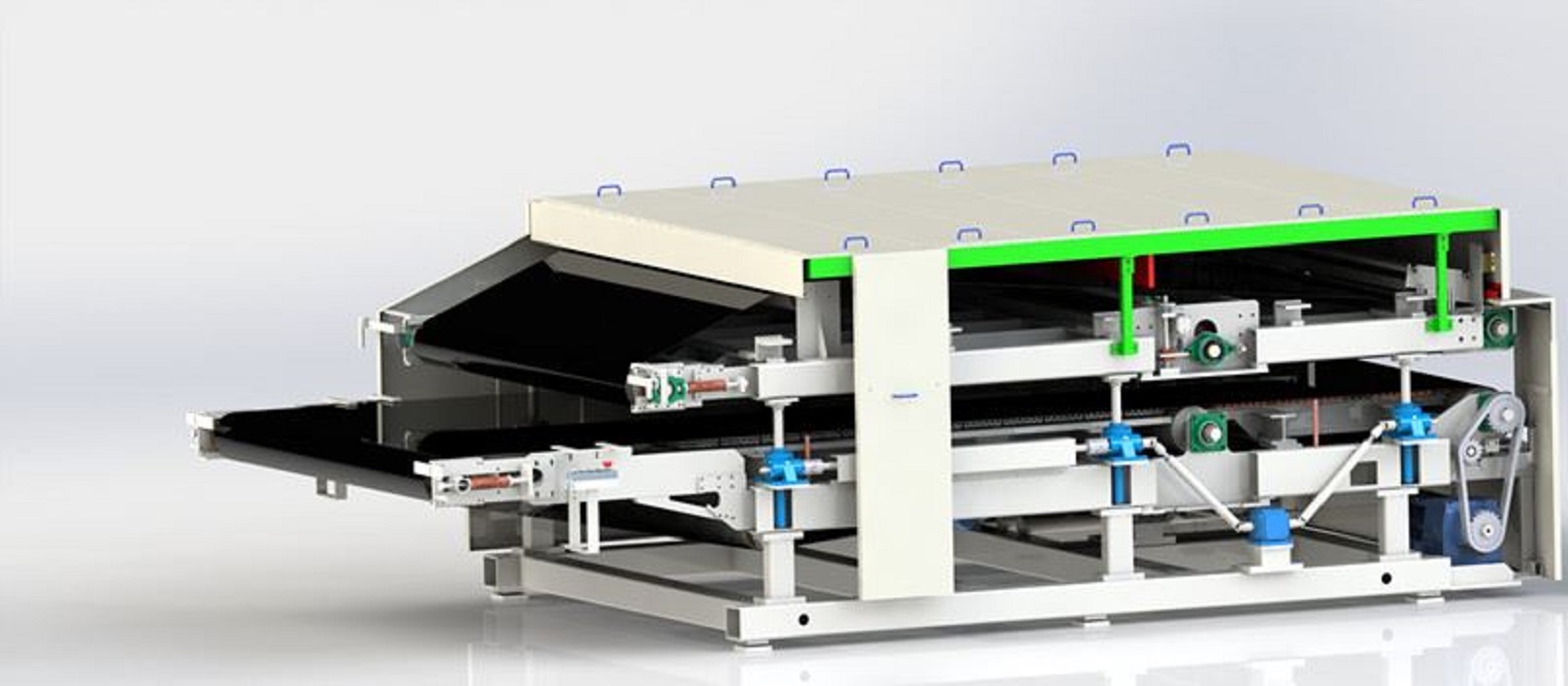

Machine Drawing & Pictures
More Applications

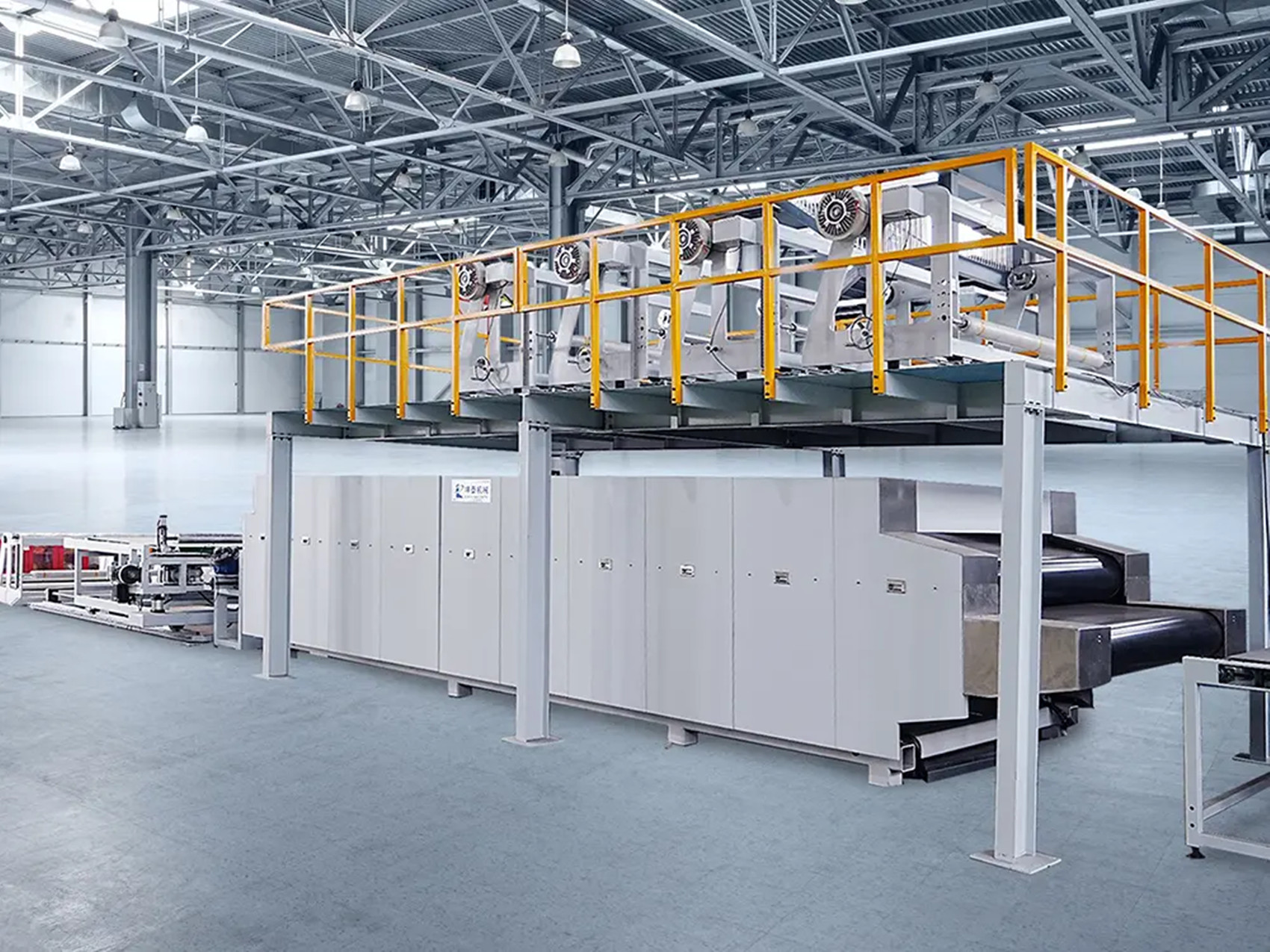

Except honeycomb panel, this double belt press also can be used for many others materials, such as continous fiber reinforced thermoplastic(CFRT)...
KUNTAI R&D Center in Italy
Production Capacity
The first factor to consider is the production capacity of the double-belt press. You need to determine the volume of material you will be processing and choose a press that can handle the output you want. Look for a press with a high nominal capacity to ensure efficient and uninterrupted production.
Flexibility and Versatility
It’s important to evaluate the flexibility and versatility of a double-belt press. Consider the range of materials you’ll be using and make sure the press can accommodate different types and sizes. Look for features such as adjustable belt speed and pressure to meet different production needs.
Quality and Efficiency
A key consideration is the ability of the double belt press to deliver high quality and efficient results. Look for features such as uniform lamination, constant temperature control, and reliable reproducibility. These factors will ensure consistent and superior output, reduce waste and maximize productivity.
Cost-effectiveness
Evaluate the cost-effectiveness of a double-belt press by considering factors such as material, energy and labor costs. Look for presses that offer savings in these areas, as this will contribute to the overall profitability of your production process.
Eco-friendliness
In today's environmentally conscious world, it is important to choose a double-belt press that operates in an environmentally friendly manner. Look for presses that utilize a continuous process and minimize water consumption. This will not only reduce your environmental footprint, but also contribute to sustainable and responsible production practices.
Estimate
By carefully assessing these factors, you can make an informed decision when choosing a double belt press for your industrial production needs. Remember to prioritize your specific requirements and select a press that offers the right combination of capacity, flexibility, quality, cost-effectiveness, and eco-friendliness. With the right press in place, you can enhance your production capabilities and achieve success in your industry.
