Double Belt Laminating Machine for Lightweight Fiberglass Material

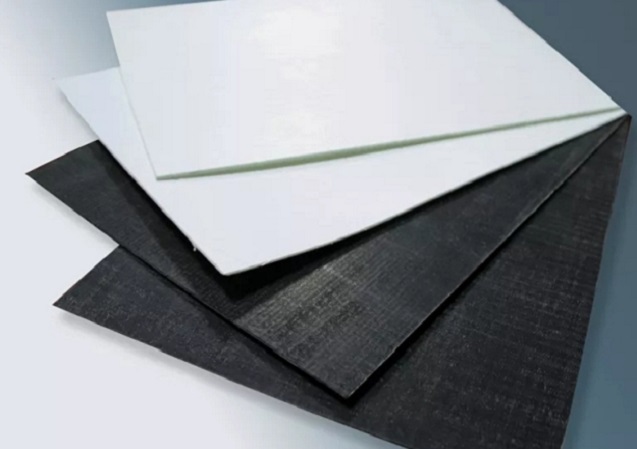

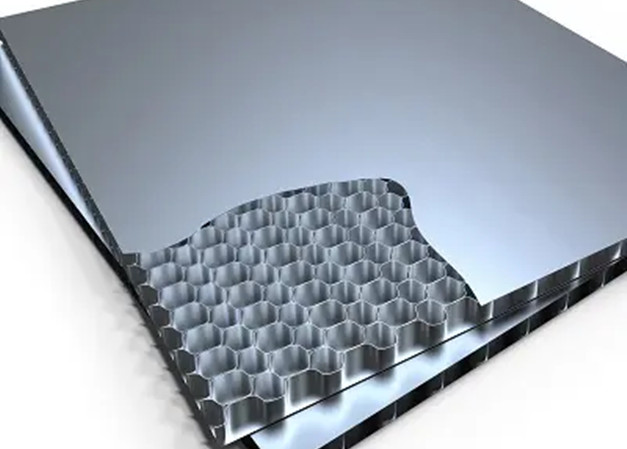

1) Double belt laminating machine is used to continuously laminating various materials, such as lightweight fiberglass material, woven fabrics, cotton fabrics, leather, Foam, Non-woven, Honeycomb panel and some plate, LWRT and CFRT, etc by using hot melt film/hot melt powder, etc. With uniform and constant temperature control system, it can ensure final products reliable and prefect laminating.
2) The height adjustment as well as the level adjustment of the top pressure roller is motor-controlled by means of a precisely adjustable lifting spindle.
3) Multilayers of materials can be laminated with the media of hot melt film or hot melt powder by heating in one step, greatly improving production efficiency. we install separately spring-mounted elements, large roller diameters for precise pressure and combine chain guided, servo-driven conveyor belts.
4) Machine heating zone has 18 control zones which are electrically heated. For optimal energy conservation, heating and cooling sections are insulated. Heating Zone length can be from 1000-6000mm, it is customized too.
5) Cooling zone will enhance the bonding of laminated materials. Cooling zone length can be from1000-6000mm, can be customized as different kinds of raw materials' laminating requirements.
6) Kuntai double belt press machine is also controlled by PLC with touch screen,, it is full automatic and easy to operate. Whole machine modular design also provides flexibility in production processes. Machine structure can be changed based on different materials and laminating process. Can choose both heating and cooling zones, only heating zone, only cooling zone.
Machine Features
-
Sturdy Frame Construction
-
Optimal Energy Construction
-
Smooth Seam PTFE Coated Fiberglass tape
-
Spring Shock Absorber Element
-
0-150mm Gap Adjustable
| width(mm) available upon request | 1,700 | 1,900 | 2,100 | 2,300 | 2,500 | 2,700 | 2,900 |
| Height adjustment | 0-150 mm | 0-150 mm | 0-150 mm | 0-150 mm | 0-150 mm | 0-150 mm | 0-150 mm |
| Heating zone(mm) | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps | 3,000, expandable in 1,500 mm steps |
| Colling zone(mm) | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps | 1,500, expandable in 1,500 mm steps |
| Control zones(number) | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Running speed(m/min) | 0.5-30 | 0.5-30 | 0.5-30 | 0.5-30 | 0.5-30 | 0.5-30 | 0.5-30 |

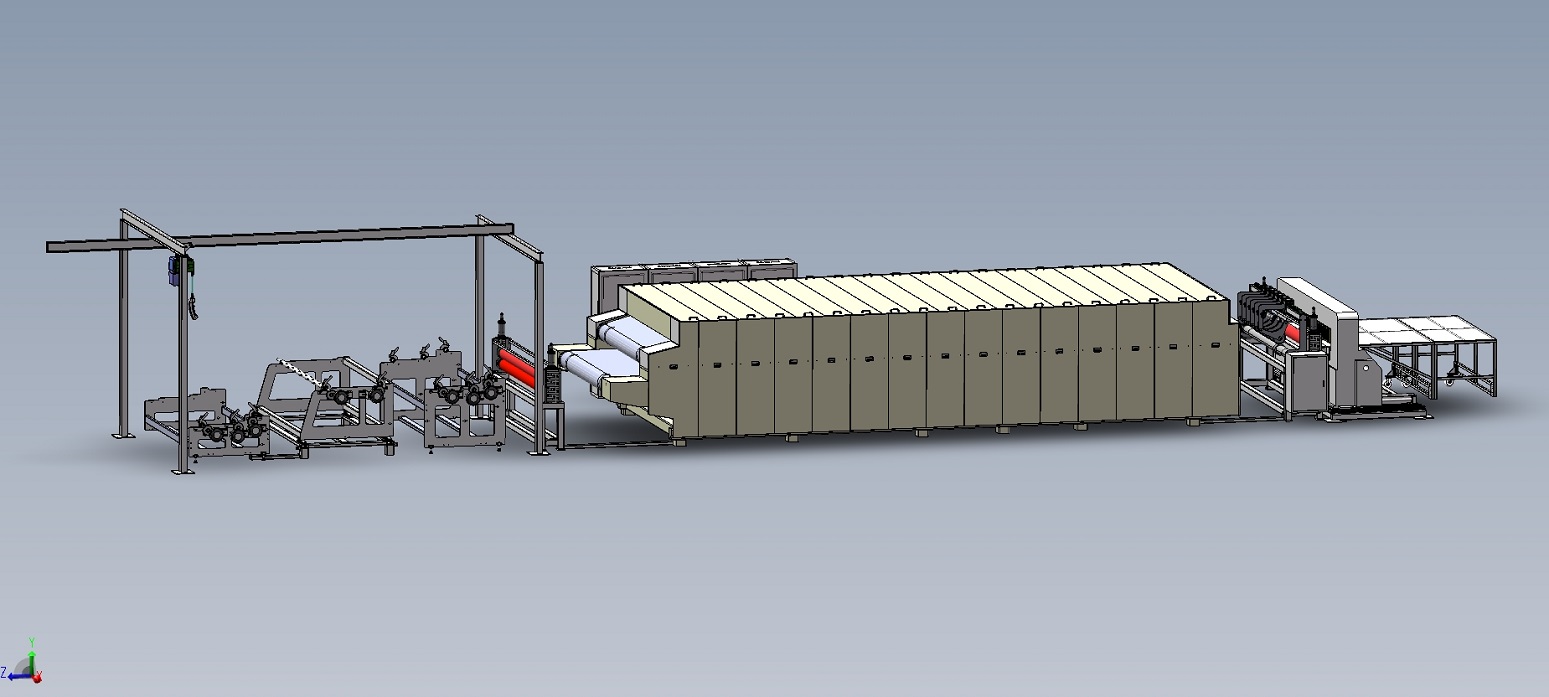

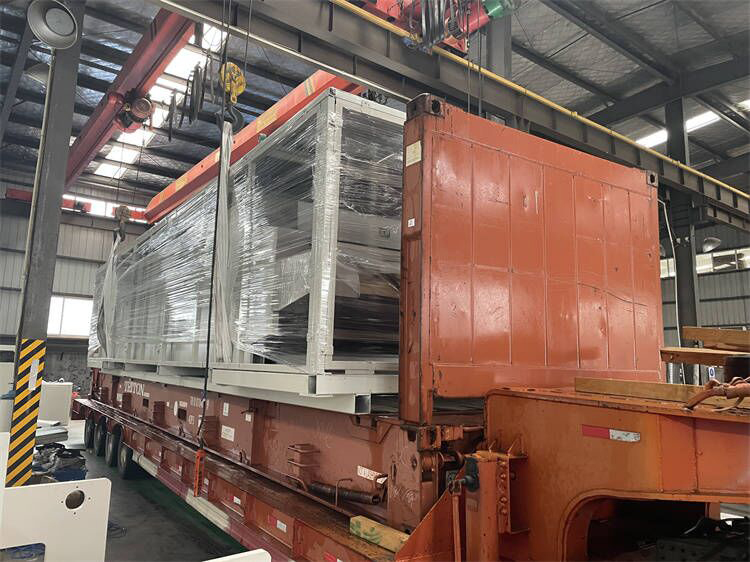

Machine Drawing & Pictures
Application
Production Capacity
The first factor to consider is the production capacity of the double-belt press. You need to determine the volume of material you will be processing and choose a press that can handle the output you want. Look for a press with a high nominal capacity to ensure efficient and uninterrupted production.
Flexibility/ Versatility
It’s important to evaluate the flexibility and versatility of a double-belt press. Consider the range of materials you’ll be using and make sure the press can accommodate different types and sizes. Look for features such as adjustable belt speed and pressure to meet different production needs.
Quality and Efficiency
A key consideration is the ability of the double belt press to deliver high quality and efficient results. Look for features such as uniform lamination, constant temperature control, and reliable reproducibility. These factors will ensure consistent and superior output, reduce waste and maximize productivity.
Cost-effectiveness
Evaluate the cost-effectiveness of a double-belt press by considering factors such as material, energy and labor costs. Look for presses that offer savings in these areas, as this will contribute to the overall profitability of your production process.
Eco-friendliness
In today's environmentally conscious world, it is important to choose a double-belt press that operates in an environmentally friendly manner. Look for presses that utilize a continuous process and minimize water consumption. This will not only reduce your environmental footprint, but also contribute to sustainable and responsible production practices.
Estimate
By carefully assessing these factors, you can make an informed decision when choosing a double belt press for your industrial production needs. Remember to prioritize your specific requirements and select a press that offers the right combination of capacity, flexibility, quality, cost-effectiveness, and eco-friendliness. With the right press in place, you can enhance your production capabilities and achieve success in your industry.
