Crossply Machine for 0° and 90° UD fabric laminating

1.Crossply Machine is cutting segments from the UD, stacking them in the desired orientation – normally 0/90° – and pressing them together. It is made up of 0°unwinding device, 90°unwinding, width fixed device, pressing and laminating device,and rewinding device, etc. It is used for 2/4/6/8UD fabric pressing and laminating. In this way the reinforcement can be made more efficient, leading to a more lightweight and thinner technical textile.

2.It is capable of handling a wide range of materials, including carbon fiber, fiberglass, and aramid, making it a versatile solution for diverse manufacturing needs. Whether it’s creating lightweight components for aircraft or durable parts for automotive applications, this machine delivers the performance and flexibility required to meet the demands of modern composite manufacturing.

3.The Crossply Machine is designed with user-friendly features that enhance operational efficiency. Its intuitive interface and easy-to-use controls make it accessible to operators of varying skill levels, reducing the learning curve and increasing productivity. Furthermore, the machine’s robust construction and reliable components ensure long-term durability and minimal maintenance requirements, contributing to overall cost savings and operational reliability.

4.The Crossply Machine is designed with a focus on safety, incorporating advanced safety features to protect operators and maintain a secure working environment. This commitment to safety underscores our dedication to providing a solution that prioritizes the well-being of our customers and their workforce.

5. the Crossply Machine sets a new standard for precision and performance in 0° and 90° UD fabric pressing and laminating. Its advanced technology, versatility, user-friendly design, and commitment to safety make it an indispensable asset for manufacturers seeking to elevate their composite manufacturing capabilities. With the Crossply Machine, you can achieve superior results with confidence and efficiency.

Main process:

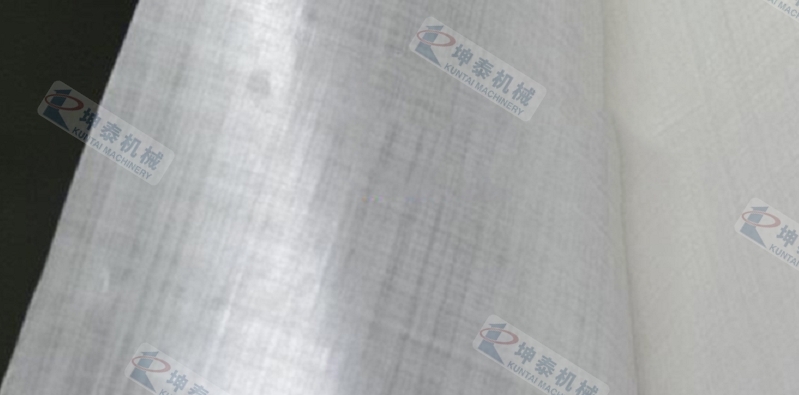

Put the unidirectional PEUD on the 0° and 90° tension unwinding devices. The 0° UD tension fabric is unwind to the hot pressing platform by the servo traction device before coiling. After the 90° UD fabric is pulled and positioned by the servo width setting device, it is cut by the hot cutting device. The upper hot pressing plane is quickly pressed down, and the pressure is transmitted through signal sensing to drive the composite. Then, the servo traction is used in conjunction with the tension shaft to roll the PEUD orthogonal finished fabric.
