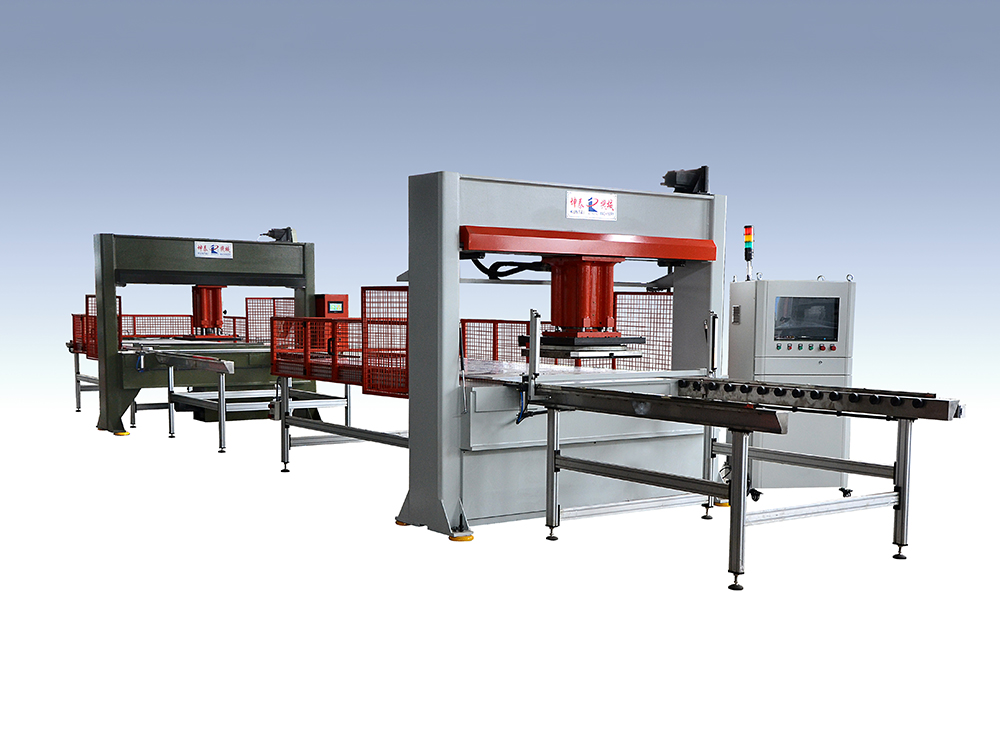

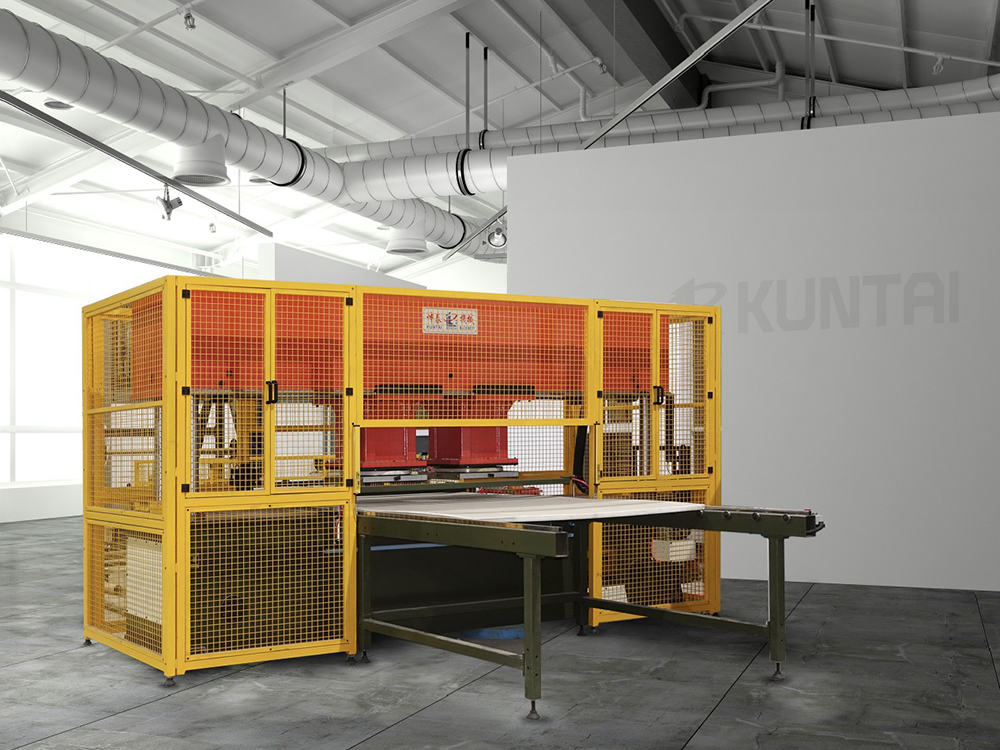

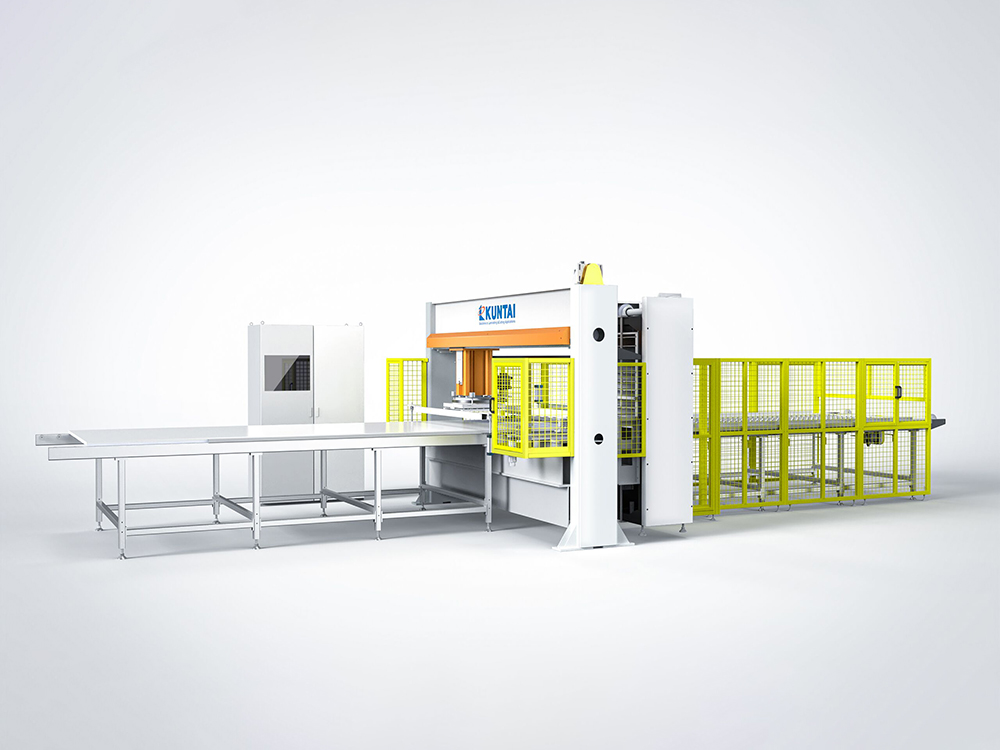

Automatic hydraulic cutting machine -sliding type feeding table for sheet materials

This sliding table type travel head cutting machine machine is suitable for continuous cutting operation of both rolls and sheets materials, such as fabric, foam, leather, rubber, insole board, and so on.

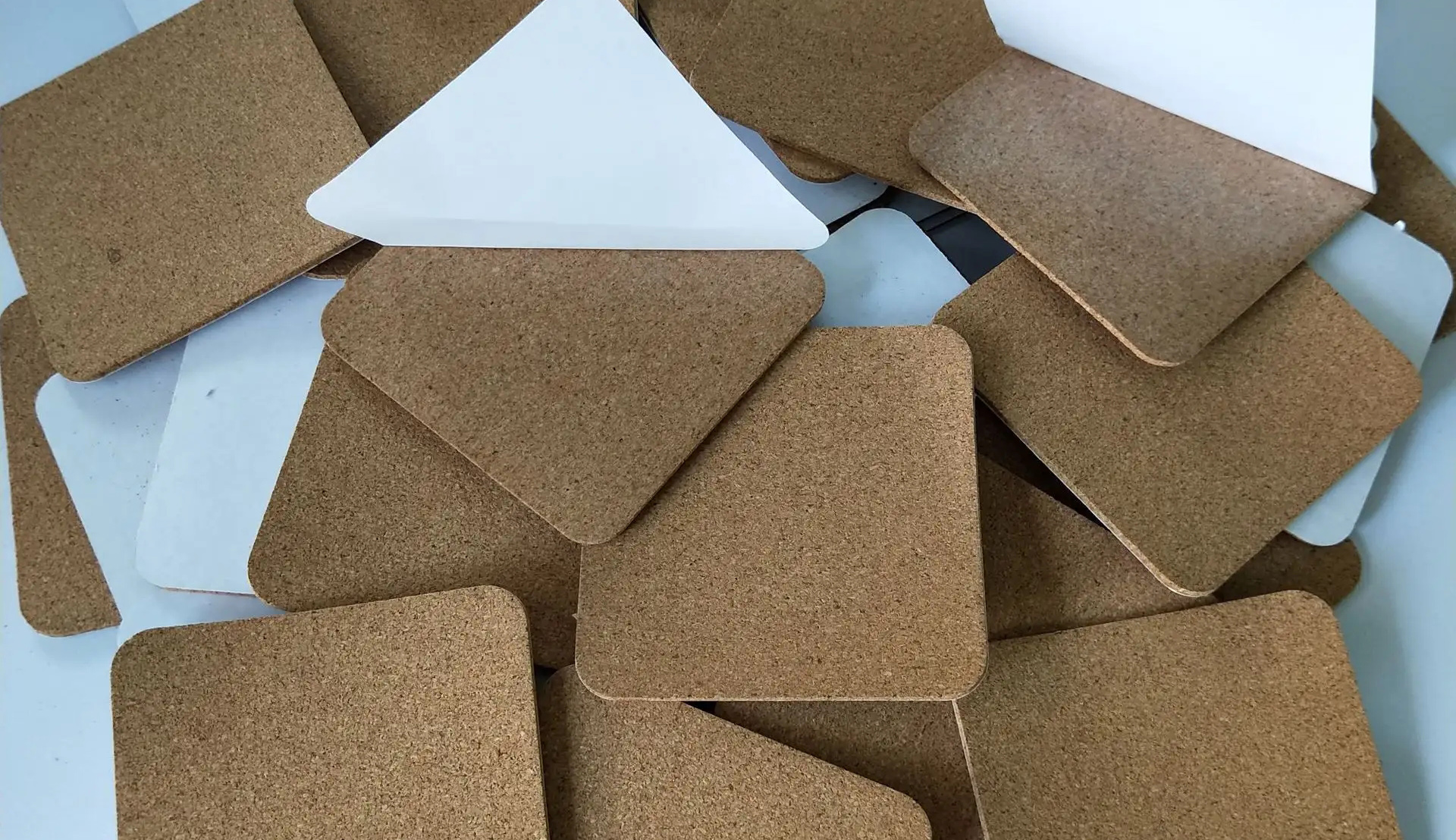

Application: sports goods, shoe uppers, artificial flower, Cork gaskets and mats, Automotive interior, shoes and bags, etc

Product features

1. It adopts Servo motor which makes accurate feeding possible and controls horizontal movement and rotation of the cutting head. Multilayers of materials can be clamped by the cylinder for stepping feeding. Other feeding methods are also available on request.

3. The distance of cutting head and feeding length can be accurately set, which has solved the problem of inaccurate feeding and layering length of multilayer materials.

4. The die cutting machine has various working modes such as inching, manual and automatic etc. The workers need only to pick up the products, with labor intensity reduced and work efficiency enhanced.

5. Special hydraulic system makes low noise possible and saves oil. High quality and imported oil pump and other parts are available on request.

6. As the machine is controlled by.PLC with high automation degree, only one worker is required for the whole machine,so that the production efficiency can be enhanced for 3-5 times and the power can be almost 1/3 saved.

Main Machine Parameters (Customizable)

Model	KT-C
Maximum Cutting Force (ton)	25	25	25	50	50	50
Working Table (mm)	1800*500	2000*500	2200*500	1800*550	2000*550	2200*550
Travel Head Size (mm)	500*500	500*500	500*500	550*550	550*550	550*550
Adjustable Stroke (mm)	5-150	5-150	5-150	5-150	5-150	5-150
Motor Power (kw)	2.2	2.2	2.2	4.0	4.0	4.0
Estimated Machine Dimension (mm)	22006202000	24006202000	26006202000	22006202000	24006202000	26006202000
Estimated G.W (kg)	2300	2800	3500	3500	4200	5000
