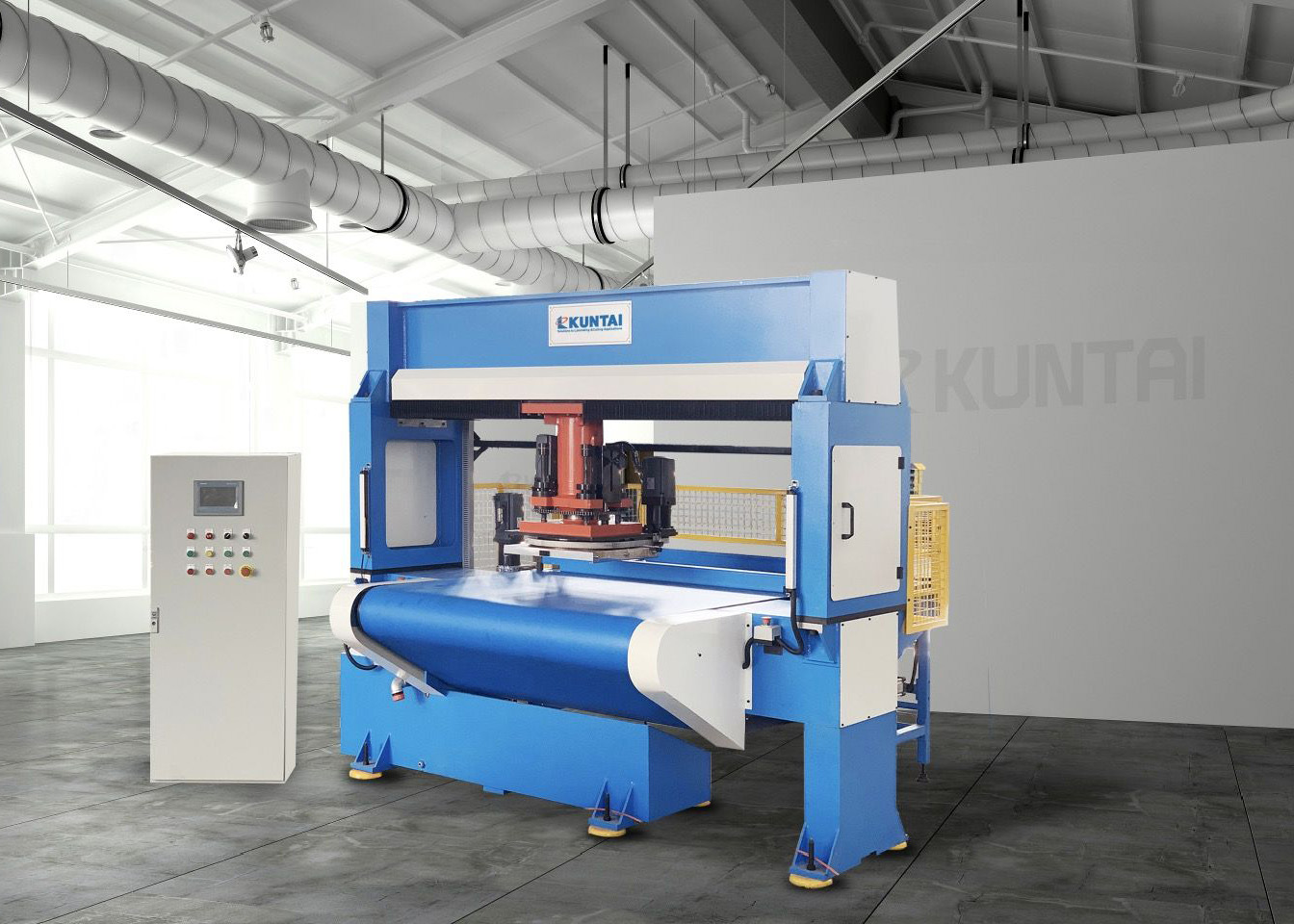

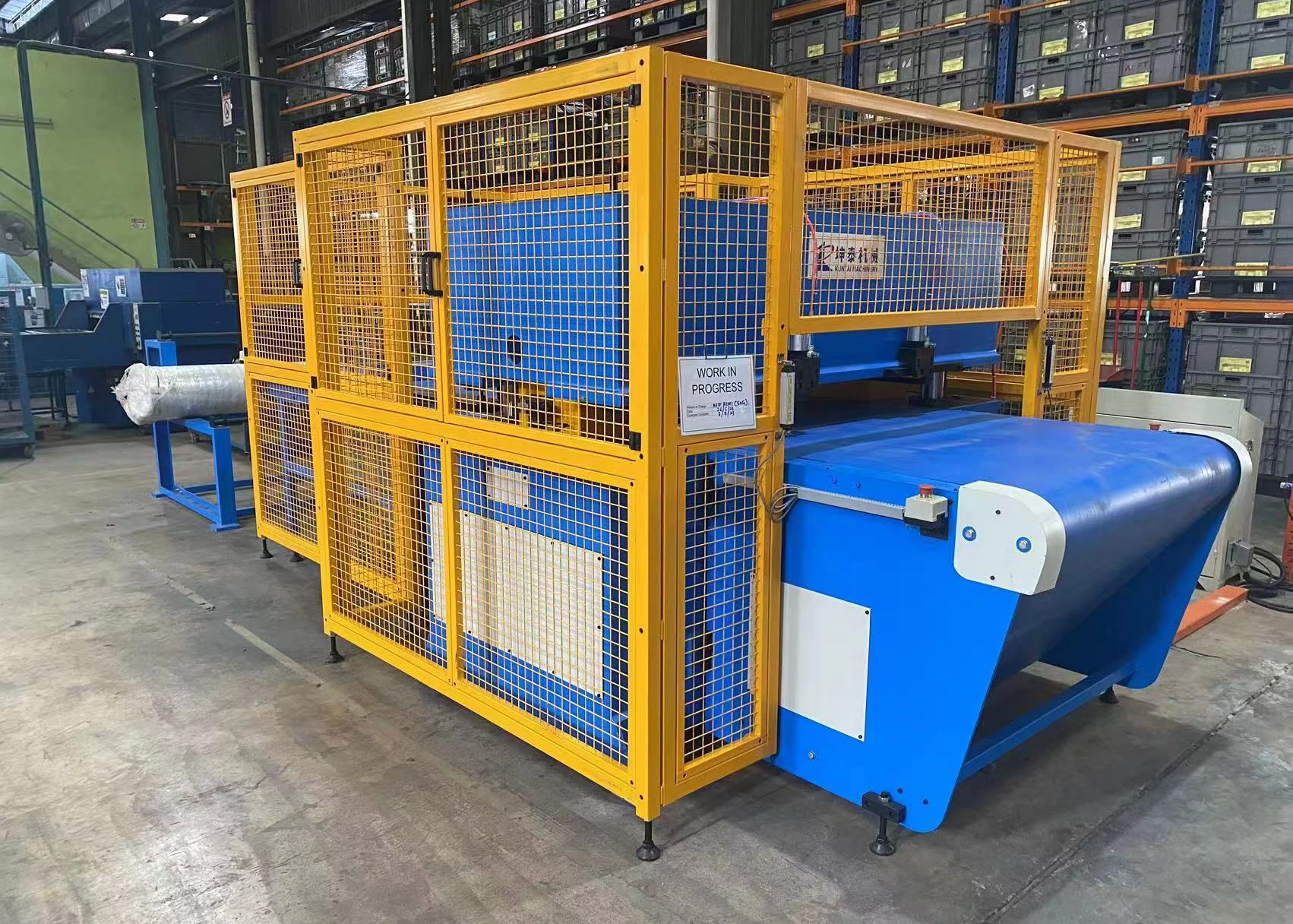

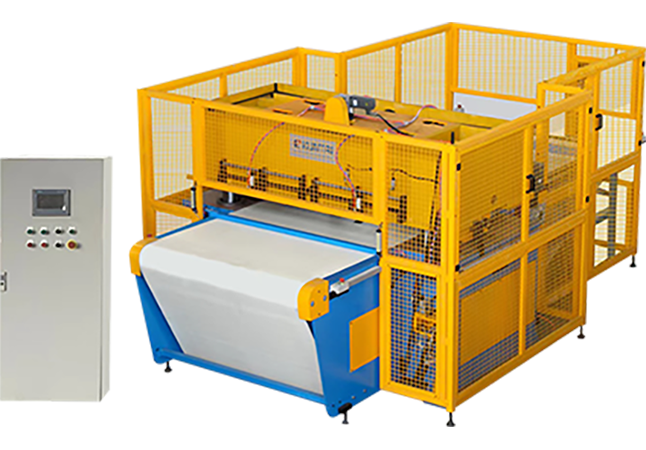

Automatic Full Beam Type Hydraulic Cutting Machine

Precision Feeding

The machine adopts pneumatic clamping for the material movement, to ensure the material without deformation or displacement

Flexible Operation Modes

Offering seamless functionality fully automatic, semi-automatic, and manual modes, catering to diverse production needs.

Enhanced Performance

The machine is driven by a servo motor. The synchronous belt transmission is used for the material longitudinal feeding, the feed length can be directly input on the touch screen

Durability & Maintenance

Integrated with a central automatic lubrication system that preserves machine precision and extends service life.

Efficient Material Handling

Materials are seamlessly loaded, die-cut, and offloaded on the conveyor belt, streamlining the entire process for both sheet and roll materials.

Customizable Unwinding System

Tailored to individual client requirements, with separate platforms for sheet materials and a customizable roll feeder system.

Strong structure

 The main cutting machine is composed of four-column guilding, a hydraulic part and strong machine frame etc

Quick cutting die changing

The upper platen is provided with a cutting mold pneumatic clamp device, to ensure the convenient and quick replacement of cutting mold

Clamp type conveying belt stepping feeding part

 This part is composed of a servo motor, a speed reducer, a synchronous belt transmission device, a pneumatic clamping device, a tensioning device , a conveying belt; The conveying belt is die cutting resistance

Main Cutting Machine

The main cutting machine is composed of four-column guilding, a hydraulic part and machine frame etc.

The electrical part

The main control cabinet is arranged on the right of the machine (It is decided by the buyer to match needs on the ground )

PLC system

Whole machine is controlled by PLC, CNC system also can be added if needed.
