Double Belt Laminator for Fiber Special Materials laminating

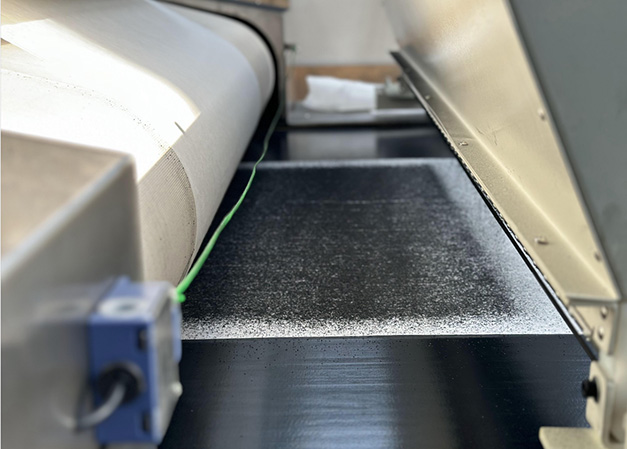

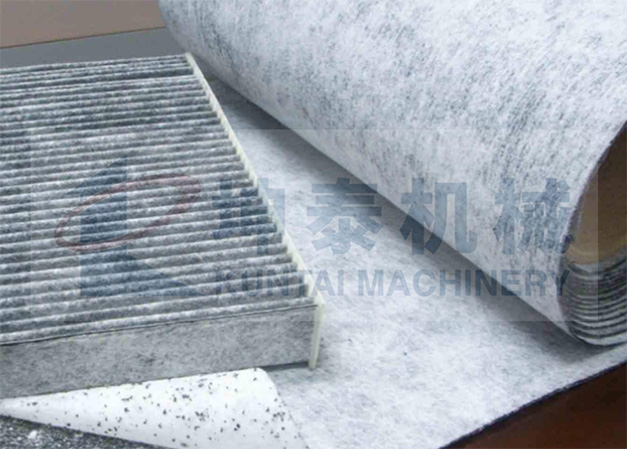

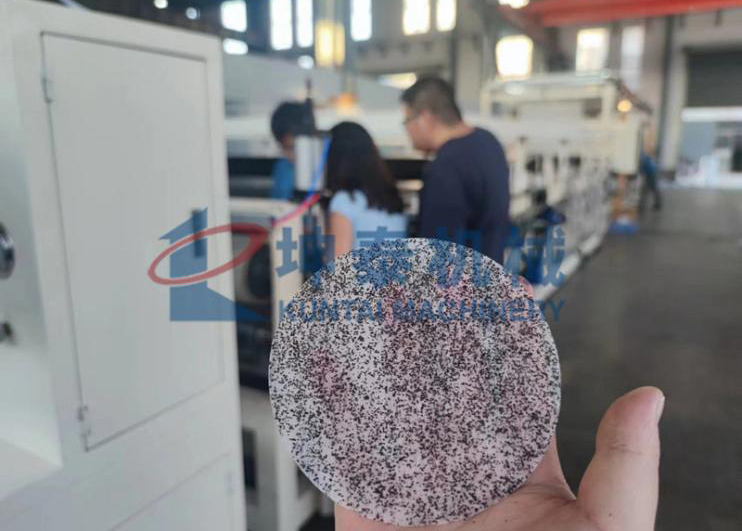

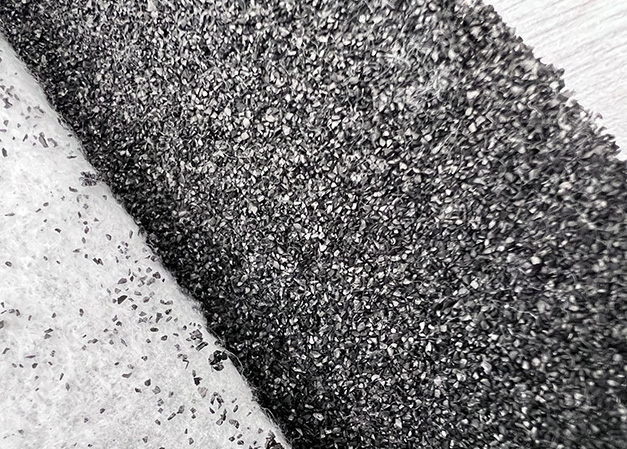

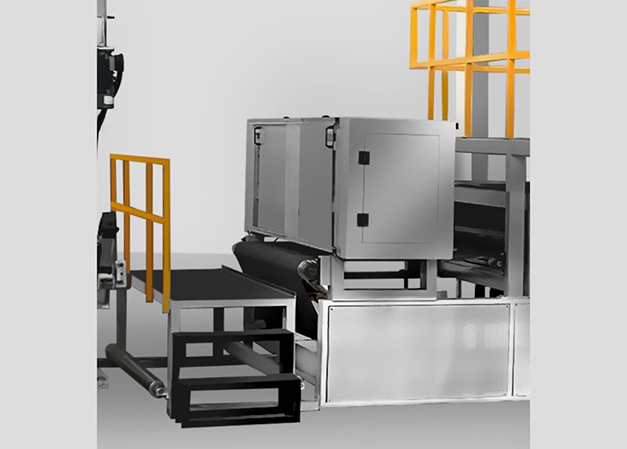

Double belt press is PLC Controlled with integrated contact heating and cooling systems. When adding with scattering device & IR heating device, it can be used for activated carbon scatter and laminating for air filter materials. Jiangsu Kuntai Machinery Co., Ltd. specializes in producing double belt presses laminating machines, which are ideal for continuous production of sheet and plate materials using the through-feed method. These production lines are designed to handle various materials, including films, fabrics, mats of fibers, granulates and powders, using processes like continuous laminating, compacting, consolidation, and smoothing. The double belt presses laminating machines from Kuntai provide reliable and efficient production systems for a wide range of industries. With their advanced technology and high-quality construction, these machines offer exceptional performance and precision in laminating and processing materialseld, It can be also used for scattering hot melt adhesive powder, activated carbon and other powders onto film, non-woven, fabric and other textile materials

    Product Description

    • Product Advantagess265

      Uniform and constant temperature control ensures reliable and repeatable results, minimizing variations and defects in the final output

    • Product Advantagessgqa

      The pressure is transferred through the upper and lower conveyor belts and the contact heating and cooling systems are integrated.
    • Product Advantagessjm9

      Heating and cooling in Perfect balance. Cooling zone will enhance the bonding of laminated materials.

    • Product Advantagessjm9

      Multilayers of materials can be laminated with the media of hot melt film or hot melt powder by heating in one step, greatly improving production efficiency.

    • Product Advantagessjm9

      Advanced edge alignment device, this machine increases the degree of automation, saves labor costs, relieves labor intensity, and enhances production efficiency.

    • Product Advantagessjm9

      The pressure is transferred through the upper and lower conveyor belts and the contact heating and cooling systems are integrated.

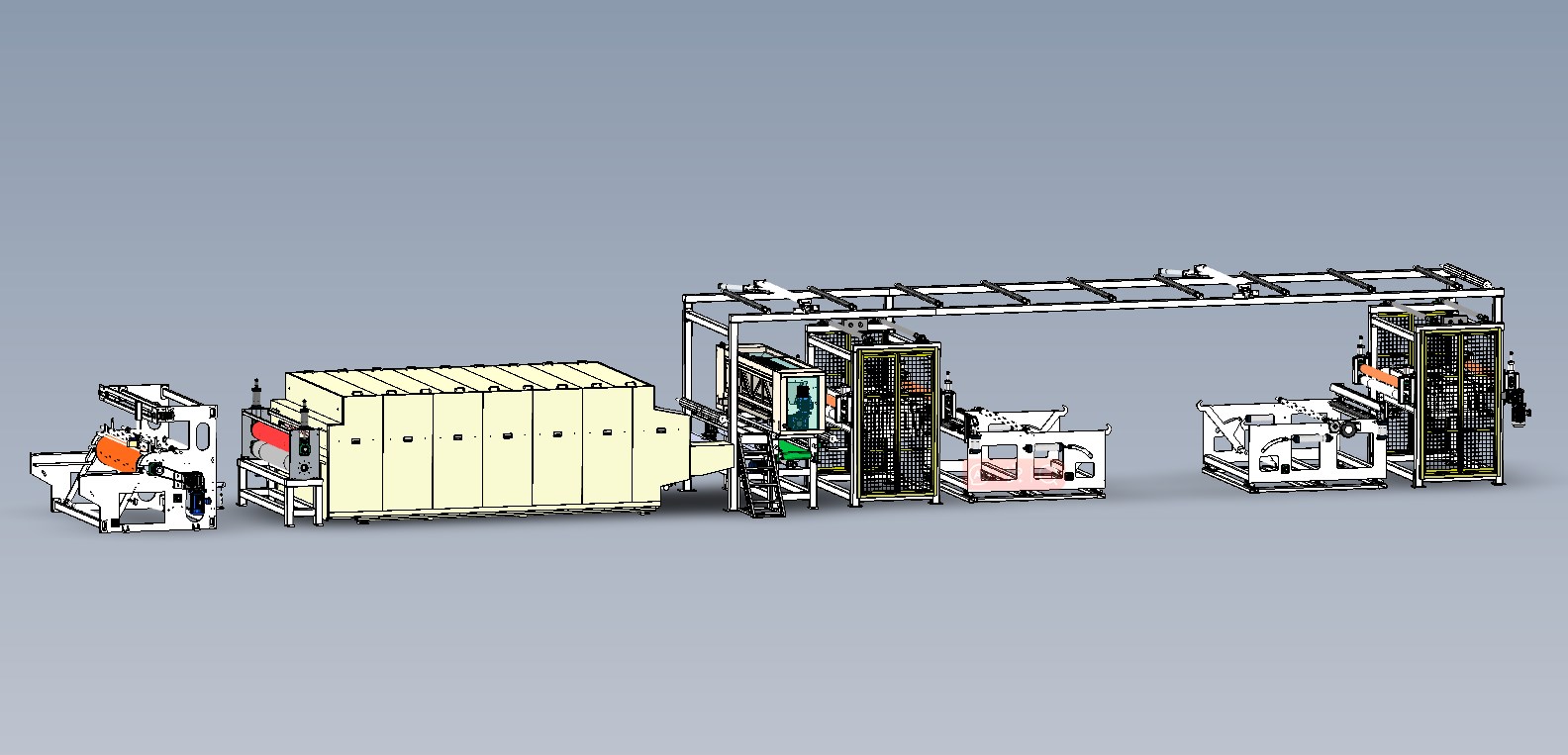

    Line Arrangement

    Possible line arrangements for powder lamination are as follows:

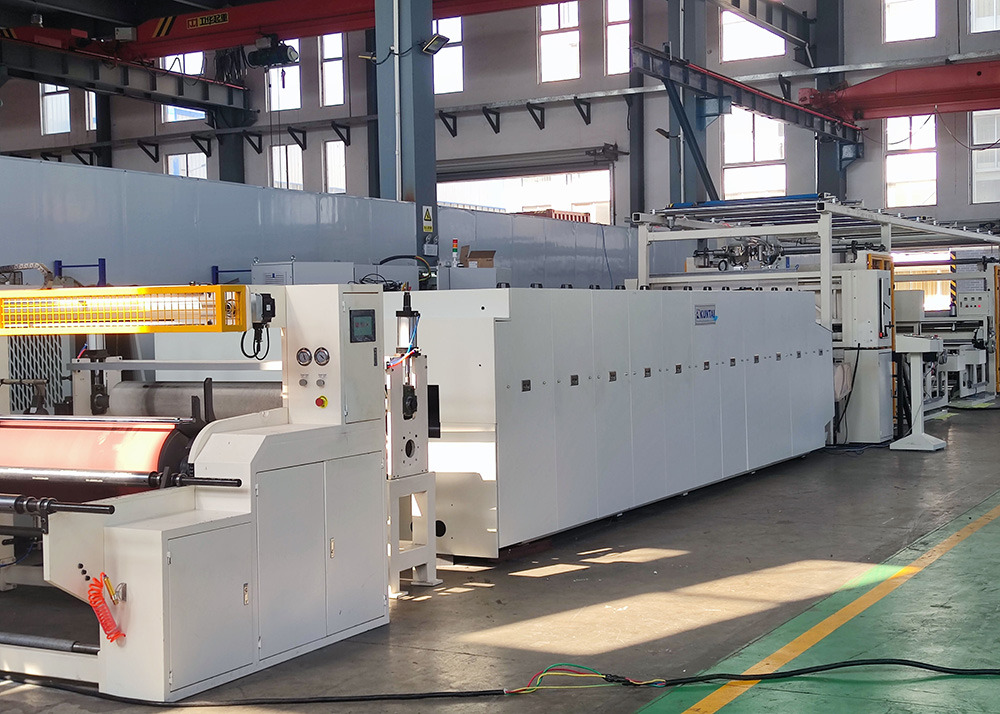

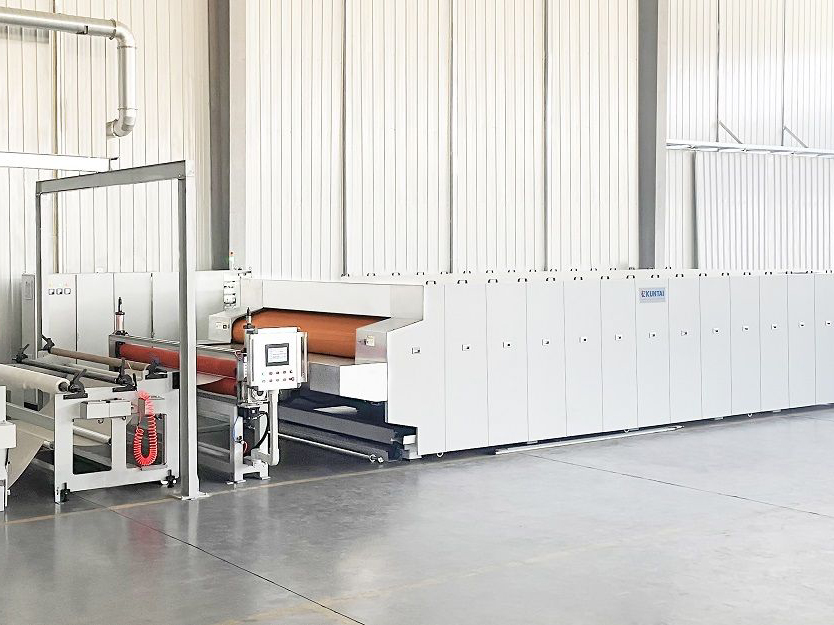

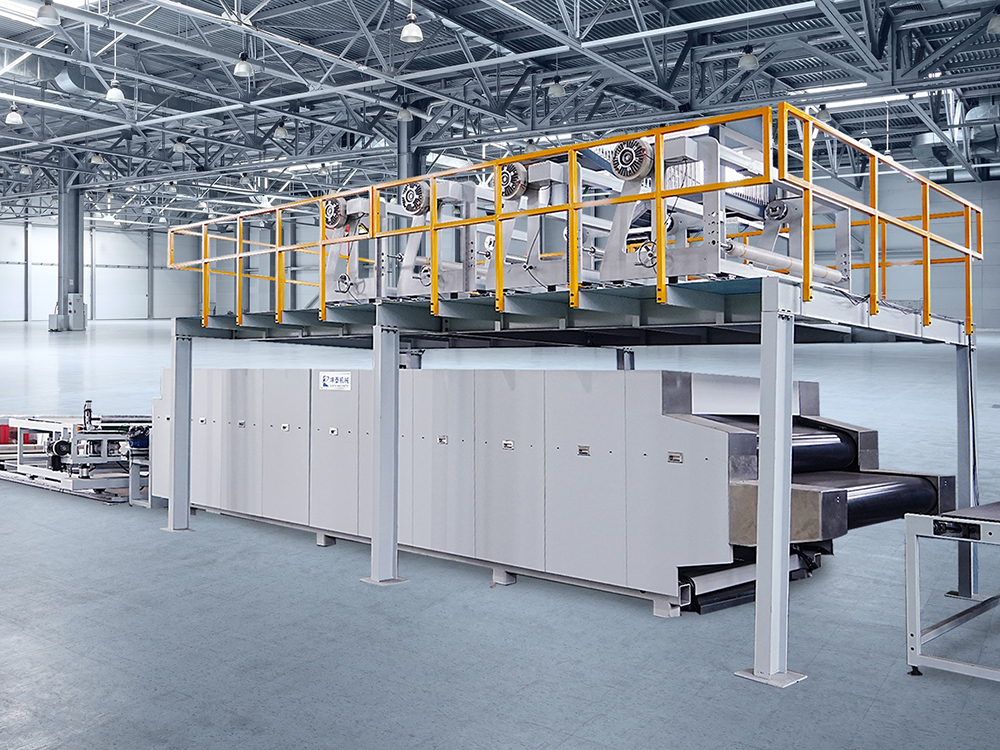

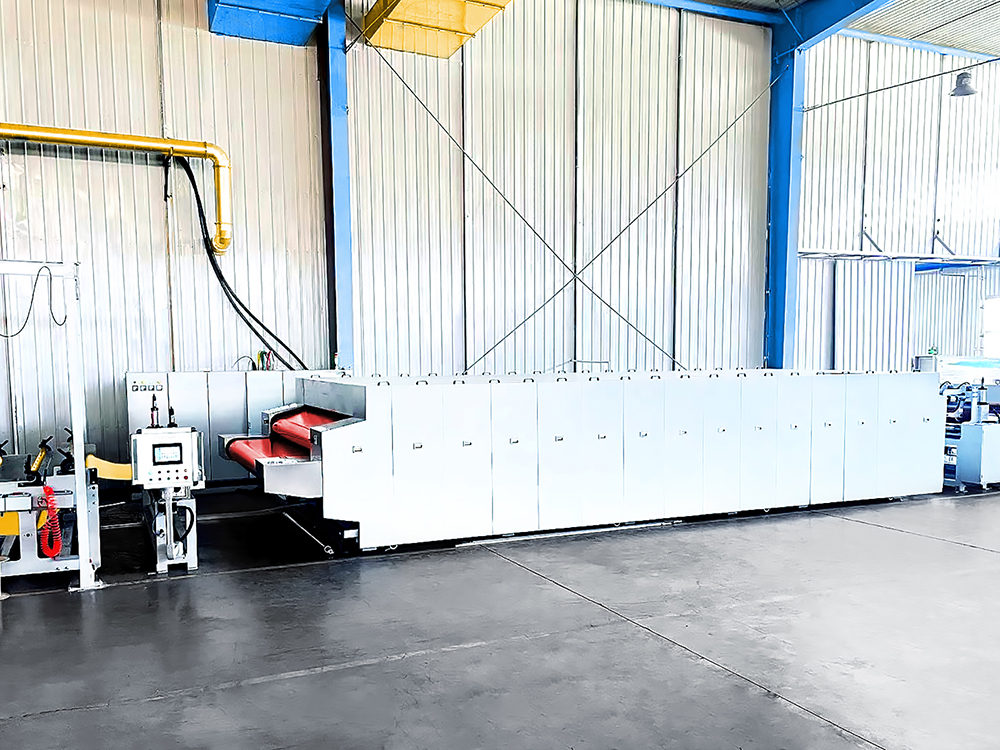

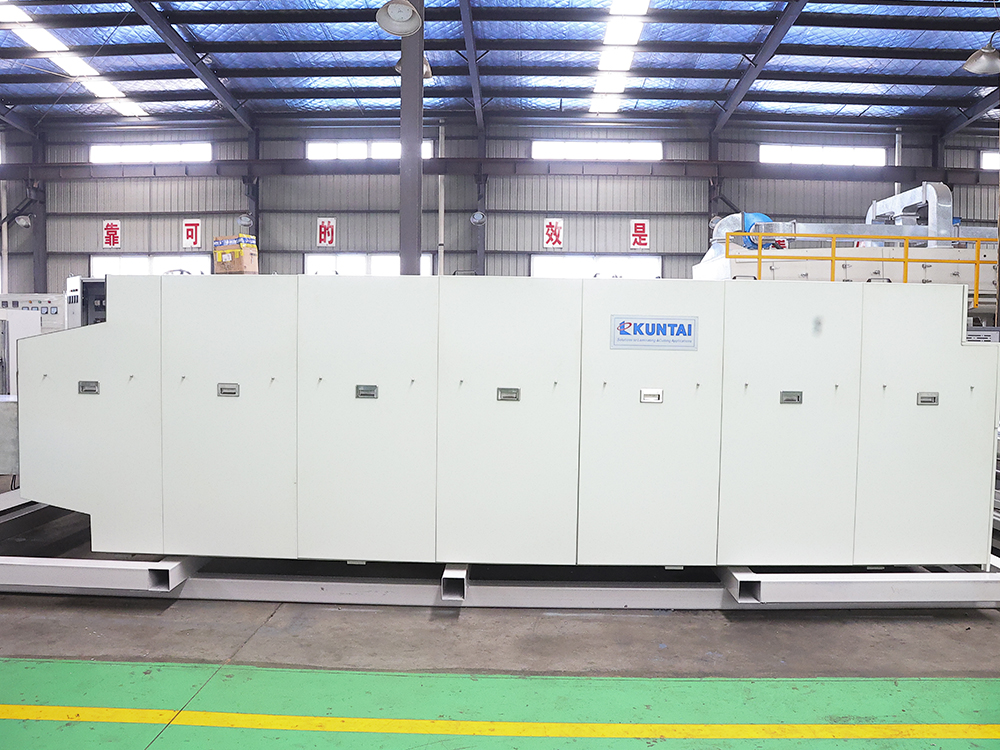

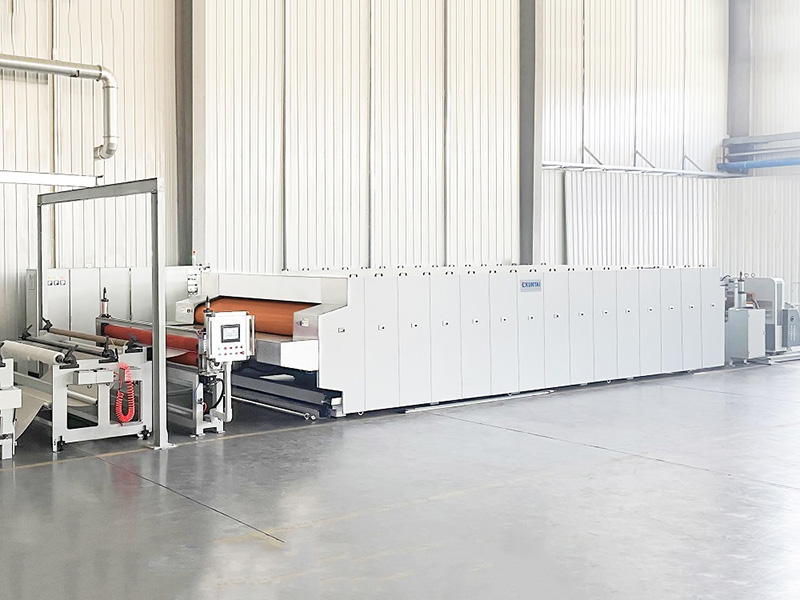

    Machine Drawing & Pictures

    double belt pressvo9

    Main Machine Parameters (Customizable)

    width(mm) available upon request 1,700 1,900 2,100 2,300 2,500 2,700 2,900
    Height adjustment 0-150 mm 0-150 mm 0-150 mm 0-150 mm 0-150 mm 0-150 mm 0-150 mm
    Heating zone(mm) 3,000, expandable in 1,500 mm steps 3,000, expandable in 1,500 mm steps 3,000, expandable in 1,500 mm steps 3,000, expandable in 1,500 mm steps 3,000, expandable in 1,500 mm steps 3,000, expandable in 1,500 mm steps 3,000, expandable in 1,500 mm steps
    Colling zone(mm) 1,500, expandable in 1,500 mm steps 1,500, expandable in 1,500 mm steps 1,500, expandable in 1,500 mm steps 1,500, expandable in 1,500 mm steps 1,500, expandable in 1,500 mm steps 1,500, expandable in 1,500 mm steps 1,500, expandable in 1,500 mm steps
    Control zones(number) 18 18 18 18 18 18 18
    Running speed(m/min) 0.5-30 0.5-30 0.5-30 0.5-30 0.5-30 0.5-30 0.5-30

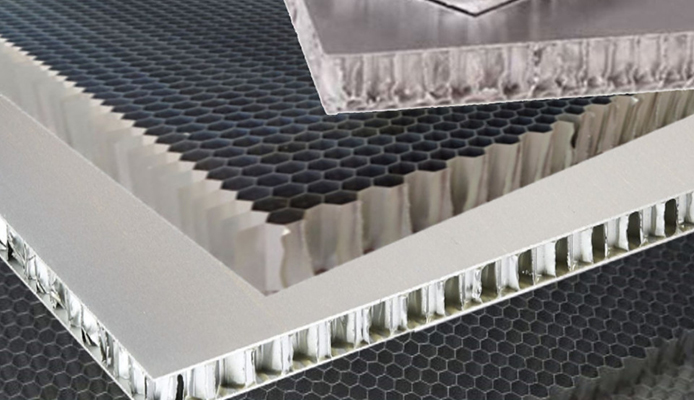

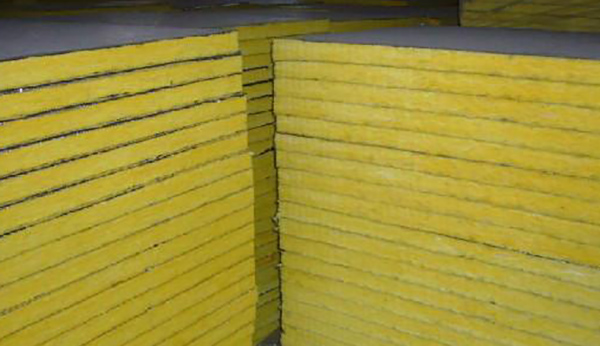

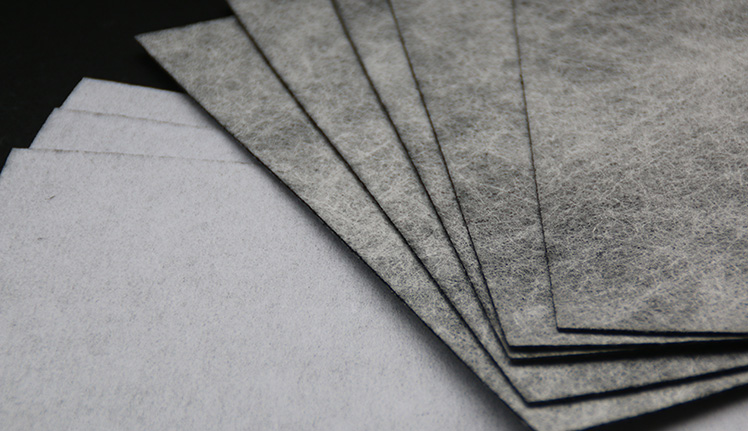

    Application

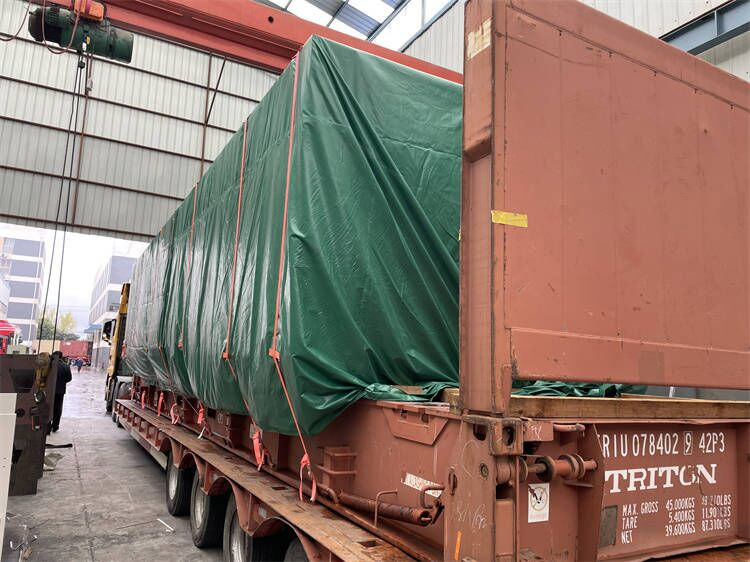

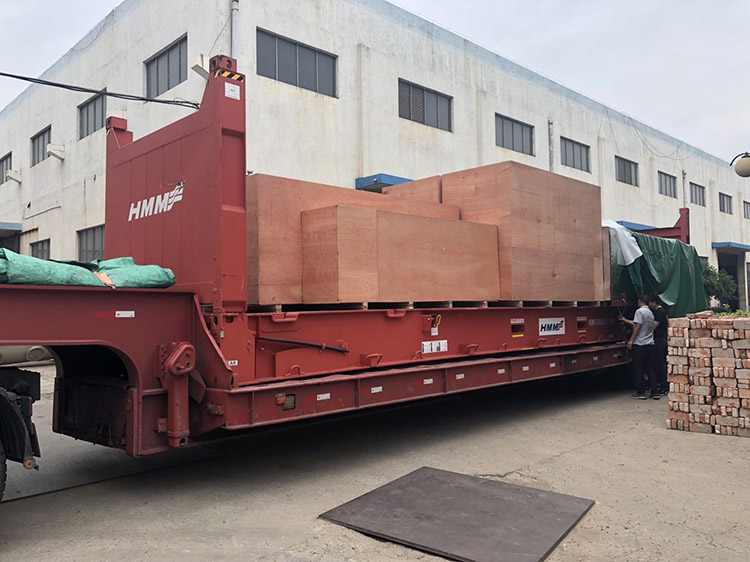

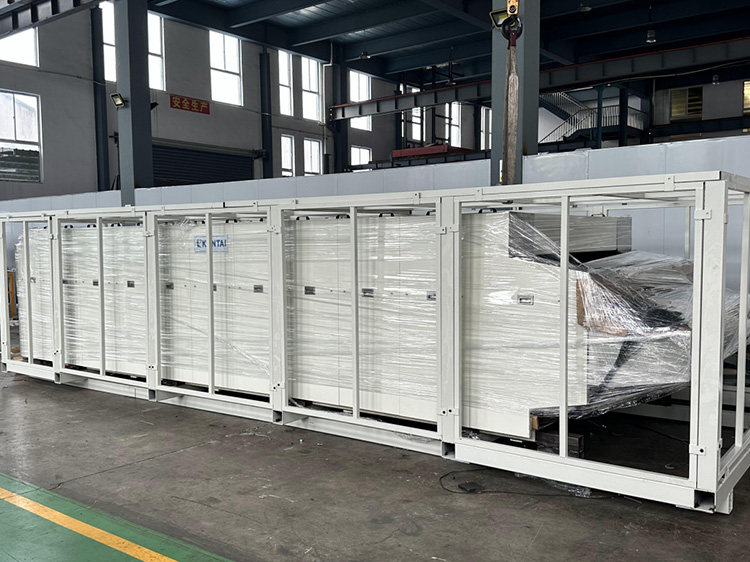

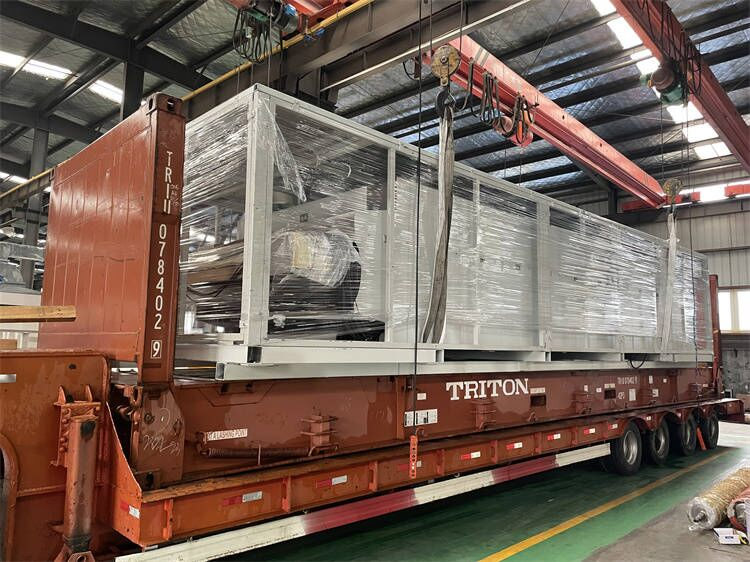

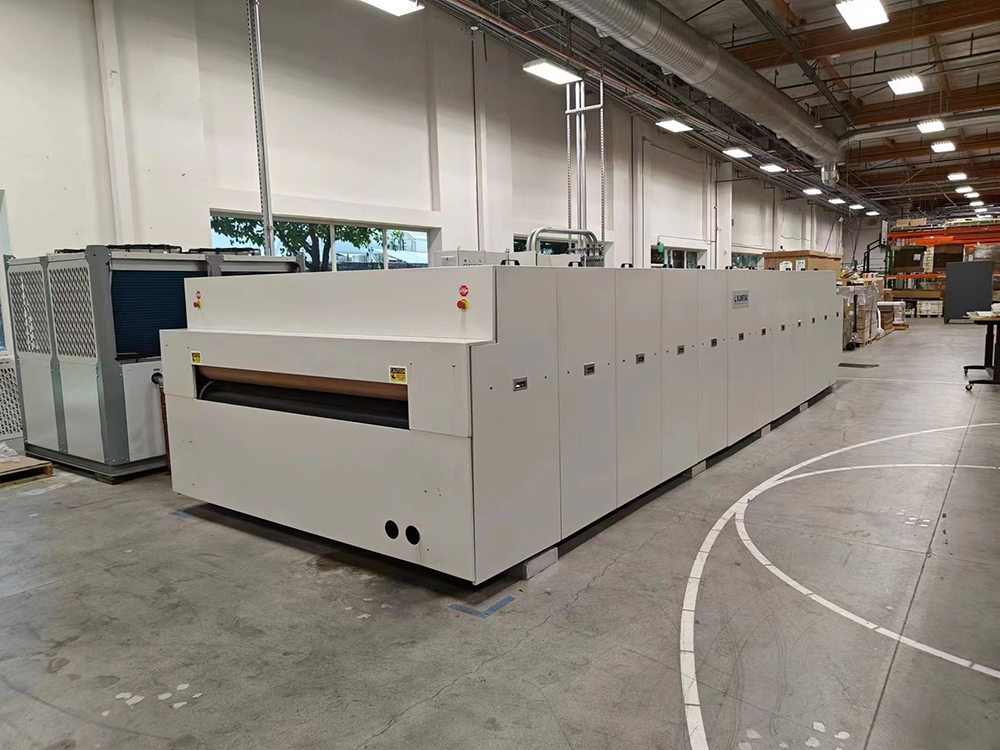

    Machine Delivery

    Factors To Consider When Choosing A Double Belt Press

    When it comes to choosing a double belt press for your industrial production needs, there are several factors that should be taken into consideration. By carefully evaluating these factors, you can ensure that you select the right press that will meet your specific requirements and deliver optimal results.
    Production Capacityuk8

    Production Capacity

    The first factor to consider is the production capacity of the double belt press. You need to determine the volume of materials you will be processing and choose a press that can handle your desired output. Look for a press with a high nominal capacity to ensure efficient and uninterrupted production.

    Flexibility and Versatilityo19

    Flexibility and Versatility

    It is important to assess the flexibility and versatility of the double belt press. Consider the range of materials you will be working with and ensure that the press can accommodate different types and sizes. Look for features such as adjustable belt speed and press force to cater to varying production needs.

    Quality and Efficiencyldi

    Quality and Efficiency

    A key consideration is the ability of the double belt press to deliver high-quality and efficient results. Look for features such as even laminating, constant temperature control, and reliable reproducibility. These factors will ensure consistent and superior output, reducing waste and maximizing productivity.

    Cost-effectivenessynv

    Cost-effectiveness

    Evaluate the cost-effectiveness of the double belt press by considering factors such as material, energy, and labor costs. Look for presses that offer savings in these areas, as this will contribute to the overall profitability of your production process.

    Eco-friendlinessaym

    Eco-friendliness

    In today's environmentally conscious world, it is important to choose a double belt press that operates in an eco-friendly manner. Look for presses that employ continuous processes and minimize water consumption. This will not only reduce your environmental footprint but also contribute to sustainable and responsible production practices.

    estimateo2n

    Estimate

    By carefully assessing these factors, you can make an informed decision when choosing a double belt press for your industrial production needs. Remember to prioritize your specific requirements and select a press that offers the right combination of capacity, flexibility, quality, cost-effectiveness, and eco-friendliness. With the right press in place, you can enhance your production capabilities and achieve success in your industry.
